Reticulated Vitreous Carbon Foam
$0.00
RVC foam density/Open Cell RVC Foam
Reticulated Vitreous Carbon Foam (RVC) / Glassy Carbon Foam
| Materials | Reticulated Vitreous Carbon Foam |
| Stock No | NCZFF112 |
| CAS | 7440-44-0 |
| Purity | 99.9% |
| Thickness | 2 mm-50 mm (Customizable) |
| PPI | 10-110 PPI (Customizable) |
| Size | 50 x 50 mm, 100 x 100 mm, 200 x 200 mm (Ask for Size customization) |
Reticulated vitreous carbon foam Available in Open Cell as well as Closed cell
RVC foam density is customizable on request while ordering. reticulated vitreous carbon foam reticulated foam.
Application: Reticulated Vitreous Carbon Foam for Electrochemistry Electrodes, High Surface Area, Temperature Stability, etc. RVC foam reticulated foam
12.7 × 10-2 ohm • in of RVC foam
5 mm, customization is also possible in RVC foam
Product: Carbon Foam (Purity: 99.9%, Thickness: 5mm) reticulated vitreous carbon foam, RVC foam, Reticulated foam
Description
Note: For pricing & ordering information, please contact us at [email protected]
Please contact us for quotes on Larger Quantities & Customization. E-mail: [email protected]
Customization:
If you are planning to order large quantities for your industrial and academic needs, please note that customization of parameters (such as size, length, purity, functionalities, etc.) are available upon request.
Shipping & Delivery
Related products
Aluminium Foam Panel
Aluminium Metal Foams Panel
Aluminium Metal Foams
| Product | Aluminium Foam Panel |
| Stock No. | NCZFF113 |
| CAS No. | 7429-90-5 |
| Purity | 99.9% |
| Cell Type | Closed Cell as well as Open Cell, customization is available |
| Density | 0.35g /cm³~ 0.7g /cm³ |
| Tensile Strength | 1.3~2.0 Mpa |
| Compressive Strength | 1.5~2.0 Mpa |
| Thermal Conductivity | 0.268 W/m.K |
| Melting Point | 780 °C |
| Shape | Foam Panel |
| Number of pores/inch (PPI) | 10-100 PPI, customization is possible on demand |
| Thickness | 1 mm – 250 mm, customization is possible on demand |
| Available Sizes | 100 x 100 mm, 500 x 500 mm, 600 x 600 mm, 1000 x 500 mm, 1200 x 600 mm, 2000 x 800 mm, Size customization is possible on demand |
| Storage Conditions | Stored in a cool and dry place, away from the fire, Heat source |
Aluminium Metal Foam Open Cell or Closed Cell, Both are available (Ask for Size Customization)
Aluminum Nanofoam
Aluminum Metal Foams
| Product Name | Aluminum Foam |
| Stock No. | NCZFF114 |
| CAS | 7429-90-5 |
| Purity | 99.9% |
| Dimension | 100 mm×100 mm, customization is also possible |
| Thickness | 5 mm, customization is also possible |
| Pore size | 2-11 mm, customization is also possible |
| Molecular Formula | Al |
| Molecular Weight | 26.98 g/mol |
| Density | 0.1~0.35 g/cm³ |
| Porosity | 60-90%, customization is also possible |
| Compressive Strength | 44 Mpa |
| Bending Strength | 27 Mpa |
| Acoustic absorptive | 0.48 |
| Tensile Strength | 1.24 MPa |
| Shear Strength | 1.31 MPa |
| Modulus of Elasticity (Compression) | 103.08 MPa |
| Modulus of Elasticity (Tension) | 101.84 MPa |
| Shear Modulus | 199.95 MPa |
| Vickers Pyramid Number | 35 HV |
| Specific Heat | .895 J/g-C |
| Bulk Thermal Conductivity | 5.8 W/m-C |
| Bulk Resistivity | 2.84 × 10-5 ohm – in |
Aluminium Metal Foam Open Cell or Closed Cell in all size, PPI and thickness, Both are Available on demand (Ask for the customization)
Copper Foam
Product: Copper Foam Structures
Copper Foam Open Cell
Copper Metal Foams| Stock No. | NCZFF101 |
| PPI | 5-120, customization is also possible |
| Bulk Density | 0.80-0.85 g/cc |
| Purity | ≥ 99.9% |
| Porosity | ≥ 70%, customization is also possible |
| Dimension | 500mm X 500 mm, customization is also possible |
| Thickness | 1 to 25 mm, customization is also possible |
Physical Characteristics of heat-absorbing Copper Foam
| Compression Strength | 131 psi |
| Tensile Strength | 1000 psi |
| Shear Strength | 190 psi |
| Modulus of Elasticity (Compression) | 107 kpsi |
| Modulus of Elasticity (Tension) | 14.6 × 103 psi |
| Shear Modulus | 40.9 kpsi |
| Vickers Hardness | 35 |
| Specific Heat | 0.385 J/g-°C |
| Bulk Thermal Conductivity | 10.1 W/m-°C |
| Coefficient of Thermal Expansion | 1.7 × 10-5 m/m–°C (0-100°C) |
| Bulk Resistivity | 2.56× 10-5 ohm – in |
| Melting Point | 1080 °C |
Electrical Conductive Nickel Metal Foam
Nickel Metal Foam
| Product Name | Nickel Metal Foam |
| Stock No | NCZFF104 |
| CAS | 7440-02-0 |
| Purity | > 99.9% |
| PPI | 10-95, customization is available |
| Pore Size | 00.5-0.5 mm, customization is available |
| Length | 500 mm, customization is available |
| Width | 500 mm, customization is available |
| Thickness | 1-20 mm, customization is available |
| Porosity | ≥ 95%, customization is available |
| Molecular Formula | Ni |
| Molecular Weight | 58.71 g/mol |
| Melting Point | 1453 °C |
| Boiling Point | 2730 °C |
| Density | 8.90 g/cm³ |
| Surface Density | 346g/m^2 |
Nickel Foam is available in a closed cell as well as open cell, please ask for customization while ordering.

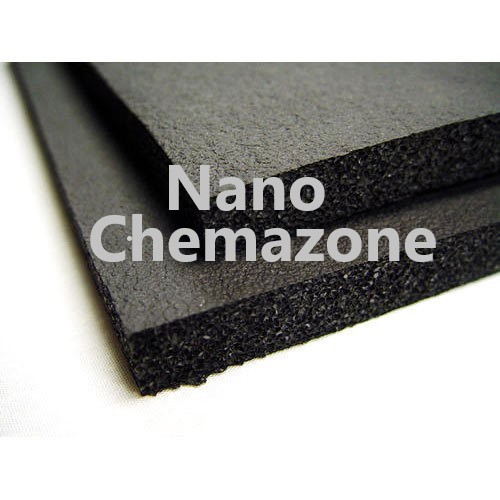

EVA Foam (Ethylene Vinyl Acetate and blended copolymers)
Product: EVA Foam Sheet (Ethylene Vinyl Acetate and blended copolymers)
CAS No.: 24937-78-8
Stock Number: NCZFF111
| Product Name | EVA Foam Sheet |
| Purity | >99.9% |
| Density | 30 kg/m3 |
| Surface Hardness | 40 °C |
| Tear Strength | 0.35 N/mm m² |
| Tensile Strength | 780 Kpa |
| Elongation at break | 100 % |
| Compression Strength | 78 Kpa |
| Compression deformation | 25 % |
| Size Change Rate | 0.8 % |
| Rebound Rate | 26.00 % |
| Elongation | 130 % |
| Service Temperature | -30 to 180 °F |
| Thermal Conductivity | 0.038 W/mK |
| Adhesive Thickness | 0.15 mm |
| Adhesive Weight | 80 g/m³ |
| Adhesion | 18 N/25 mm |
| Application | 10 °C min |
| Service | -50~ 100 °C |
| Short peak | 120 °C |
| Storage Life | 3 year |
Ask for customization while ordering
Open Cell Copper Foam Heat Exchanger
Open Cell Copper Foam Heat Exchanger
Copper Metal Foam open cell
| Stock No. | NCZFF105 |
| PPI | 10 to 110 PPI, customization is also possible |
| Bulk Density | 0.80-0.85 g/cc |
| Purity | ≥99.9% |
| Porosity | ≥70%, customization is also possible |
| Dimension | 500 mm X 500 mm, customization is also possible |
| Thickness | 1 mm to 25 mm, customization is also possible |
| Compression Strength | 131 psi |
| Tensile Strength | 1000 psi |
| Shear Strength | 190 psi |
| Modulus of Elasticity (Compression) | 107 kpsi |
| Modulus of Elasticity (Tension) | 14.6 × 103 psi |
| Shear Modulus | 40.9 kpsi |
| Vickers Hardness | 35 |
| Specific Heat | 0.385 J/g-°C |
| Bulk Thermal Conductivity | 10.1 W/m-°C |
| Coefficient of Thermal Expansion | 1.7 × 10-5 m/m–°C (0-100°C) |
| Bulk Resistivity | 2.56× 10-5 ohm – in |
| Melting Point | 1080 °C |
Ask for customization while ordering
Premium Grade Copper Metal Foams
Product: Copper Foam (Cu Foam, Purity: 99.9%, 50PPI/1mm)
Copper Metal Foams
| Stock No. | NCZFF102 |
| PPI | 10 to 110, customization is also possible |
| Bulk Density | 0.80-0.85 g/cc |
| Purity | ≥99.9% |
| Porosity | ≥70% , customization is also possible |
| Dimension | 500 mm X 500 mm, customization is also possible |
| Thickness | 1mm to 25mm, customization is also possible |
| Compression Strength | 131 psi |
| Tensile Strength | 1000 psi |
| Shear Strength | 190 psi |
| Modulus of Elasticity (Compression) | 107 kpsi |
| Modulus of Elasticity (Tension) | 14.6 × 103 psi |
| Shear Modulus | 40.9 kpsi |
| Vickers Hardness | 35 |
| Specific Heat | 0.385 J/g-°C |
| Bulk Thermal Conductivity | 10.1 W/m-°C |
| Coefficient of Thermal Expansion | 1.7 × 10-5 m/m–°C (0-100°C) |
| Bulk Resistivity | 2.56× 10-5 ohm – in |
| Melting Point | 1080 °C |
Reticulated Vitreous Carbon Foam (open cell carbon foam) RVC Foam
Reticulated Vitreous Carbon Foam /Glassy Carbon Foam
Open cell carbon foam Reticulated Vitreous Carbon Foam Product Carbon Foam (Purity: 99.9%, Thickness: 5 mm)| Materials | Carbon Foam |
| Stock No | NCZFF112 |
| CAS | 7440-44-0 |
| Purity | 99.9% |
| Thickness | 2-10 mm, customization available |
| Compression Strength | 15-75 psi |
| Tensile Strength | 25-50 psi |
| Shear Strength | 4.4×103 psi |
| Hardness | 6-7 Mohs |
| Specific Heat | 0.3 BTU/lb °F |
| Shear Modulus | 4.4 × 103 psi |
| Bulk Thermal Conductivity | 0.021-0.29 BTU/ft •hr•°F |
| Coefficient of Thermal Expansion | 1.2 × 10-6 in/in°F (0-100°C) |
| Bulk Resistivity | 12.7 × 10-2 ohm • in |
| Temperature In air | 600°F |
| Limitations Inert environment | 6330°F |
| Pore Sizes | 0.040″, customization is also possible |
| Size | 50 x 50 mm, 100 x 100 mm, 200 x 300 mm (Ask for customization) |
Reticulated vitreous carbon foam Available in Open Cell as well as Closed cell
RVC foam density is customizable on request while ordering. reticulated vitreous carbon foam reticulated foam.
Application: Reticulated Vitreous Carbon Foam for Electrochemistry Electrodes, High Surface Area, Temperature Stability, etc. RVC foam reticulated foam
12.7 × 10-2 ohm • in of RVC foam
50 x 50 x 5 mm RVC Foam with 80 PPI is ready stock, customization is also possible in RVC foam.
Product: Carbon Foam (Purity: 99.9%, Thickness: 5 mm) reticulated vitreous carbon foam, RVC foam, Reticulated foam
