Phosphor Materials

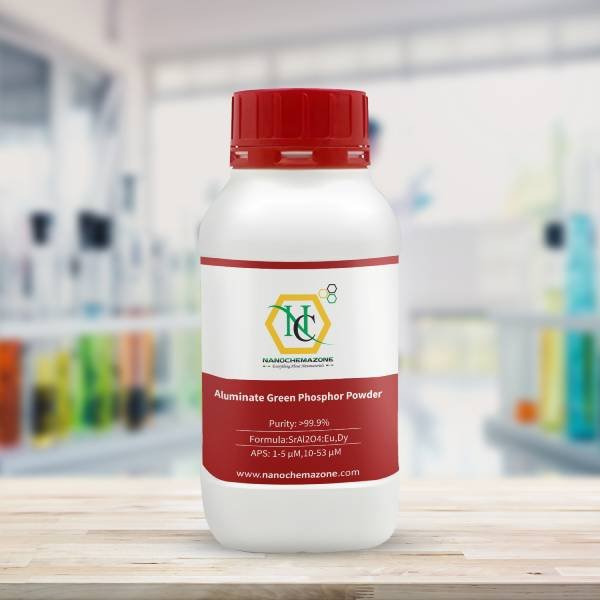

Aluminate Green Phosphor Powder
Aluminate Green Phosphor Powder
| Product | Aluminate Green Phosphor Powder |
| CAS No. | 12253-68-8 |
| Appearance | Green Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | SrAl2O4:Eu,Dy |
| Density | 4.1g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-176/25 |
Aluminate Green Phosphor Description:
Aluminate Green Phosphor Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Aluminate Green Phosphor Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Aluminate Green Phosphor Powder| Catalog No. | NCZ-MNO-176/25 |
| Particle Size | D50 3-20 um |
| Excitation Range | 450nm-470nm |
| Color Point (x,y) | 0.327-0.371, 0.556-0.578 |
| Emission Peak Wavelength | 516nm-545nm |
- Broad emission, 120nm FWHM • High resistance to heat and humidity • High thermal stability, 90% lm at 200℃
| Product | Peak Wavelength | Color Point | Particle Size (μm) | |
| p (nm) | CIEx | CIEy | D50V | |
| 515 | 516 | 0.327 | 0.578 | 12,15 |
| 520 | 522 | 0.332 | 0.577 | 12,15 |
| 525 | 526 | 0.338 | 0.576 | 12,15 |
| 530-01-05 | 530 | 0.354 | 0.573 | 5.5 |
| 530-02-14 | 530 | 0.347 | 0.572 | 14 |
| 535-01-B08 | 535 | 0.356 | 0.569 | 8.5 |
| 535-03A-14 | 536 | 0.359 | 0.569 | 14.5 |
| 535-03A-18 | 536 | 0.359 | 0.569 | 18 |
| 535-03A-25 | 536 | 0.359 | 0.569 | 25 |
| 536-01-05 | 535 | 0.364 | 0.571 | 4.5 |
| 537 | 537 | 0.366 | 0.568 | 7.5 |
| 540 | 540 | 0.371 | 0.565 | 11,14.5,18 |
| 545 | 545 | 0.394 | 0.556 | 7,10,14,15 |
Aluminate Phosphor Powder
Aluminate Phosphor Powder
| Product | Aluminate Phosphor Powder |
| CAS No. | 12004-37-4 |
| Appearance | Yellow-Green Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | SrAl2O4:Eu2 |
| Density | 3.5 to 4.1g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-163/25 |
Aluminate Phosphor Description:
Aluminate Phosphor Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Aluminate Phosphor Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Aluminate Phosphor Powder Description Aluminate Phosphors are modified YAG phosphors with good chemical stability, aging resistance, and light conversion efficiency. The luminescence can cover various colors such as green, yellow-green, yellow, orange, etc. It can be widely used in the preparation of white LED with various color temperatures and high color rendering (Ra≥90). Features: Broad emission, 120nm FWHM Choice of yellow & green wavelengths, 515-565nm High resistance to heat and humidity High thermal stability, 90% lm at 200℃ Aluminate Phosphor Powder Specifications| Type | Model | Color | Chromaticity Coordinates CIE 1931 | Spectral Performance | D50 (μm) | ||
| x | y | Chip Excitation Wavelength (nm) | Peak Wavelength λp (nm) | ||||
| YAG | LMY-4155-C | light yellow | 0.416 | 0.554 | 450-470 | 532 | 10±1 |
| LMY-4255-C | light yellow | 0.426 | 0.548 | 450-470 | 534 | 10±1 | |
| LMY-4255-CC | light yellow | 0.426 | 0.548 | 450-470 | 534 | 5±1 | |
| LMY-4354-C | yellow | 0.436 | 0.546 | 450-470 | 538 | 10±1 | |
| LMY-4453-C | yellow | 0.446 | 0.533 | 450-470 | 543 | 10±1 | |
| LMY-4453-CC | yellow | 0.446 | 0.533 | 450-470 | 542 | 5±1 | |
| LMY-4749-C | dark yellow | 0.471 | 0.493 | 450-470 | 552 | 10±1 | |
| LMY-4749-CC | dark yellow | 0.471 | 0.493 | 450-470 | 551 | 5±1 | |
| LMY-4850-C | dark yellow | 0.486 | 0.504 | 450-470 | 553 | 10±1 | |
| LMY-4949-C | dark yellow | 0.498 | 0.493 | 450-470 | 558 | 10±1 | |
| LMY-5049-C | dark yellow | 0.502 | 0.489 | 450-470 | 563 | 10±1 | |
| LMY-4255H-B | light yellow | 0.425 | 0.551 | 450-470 | 538 | 15±1 | |
| LMY-4255H-C | light yellow | 0.425 | 0.551 | 450-470 | 538 | 10±1 | |
| LMY-4354H-B | yellow | 0.436 | 0.543 | 450-470 | 540 | 15±1 | |
| LMY-4453H-B | yellow | 0.447 | 0.535 | 450-470 | 543 | 15±1 | |
| LMY-4453H-C | yellow | 0.447 | 0.535 | 450-470 | 543 | 10±1 | |
| LMY-4652H-B | dark yellow | 0.462 | 0.523 | 450-470 | 548 | 15±1 | |
| LMY-4453SH-C | yellow | 0.437 | 0.542 | 450-470 | 539 | 10±1 | |
Aluminate Yellow Phosphor Powder
Aluminate Yellow Phosphor Powder
| Product | Aluminate Yellow Phosphor Powder |
| CAS No. | 12185-10-3 |
| Appearance | White to Yellow Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | P4 |
| Density | 1.82g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-177/25 |
Aluminate Yellow Phosphor Description:
Aluminate Yellow Phosphor Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing. Aluminate Yellow Phosphor Powder Related Information : Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Aluminate Yellow Phosphor Powder| Catalog No. | NCZ-MNO-177/25 |
| Particle Size | D50 3-20 um |
| Excitation Range | 450nm-480nm |
| Color Point (x,y) | 0.415-0.464, 0.519-0.549 |
| Emission Peak Wavelength | 550nm-567nm |
- Broad emission, 120nm FWHM • High resistance to heat and humidity • High thermal stability, 90% lm at 200℃
| Product | Peak Wavelength | Color Point | Particle Size (μm) | |
| p (nm) | CIEx | CIEy | D50V | |
| 550-02-13 | 550 | 0.415 | 0.549 | 14 |
| 555-02-13 | 555 | 0.431 | 0.540 | 14 |
| 560-02-13 | 559 | 0.445 | 0.532 | 13 |
| 565-02-03 | 567 | 0.464 | 0.519 | 3 |
Blue Photoluminescent Pigment Powder
Blue Photoluminescent Pigment Powder
| Product | Blue Photoluminescent Pigment Powder |
| CAS No. | 12004-37-4 |
| Appearance | Light Gray and Blue Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | Ca4Al2O4:Eu,Nd |
| Density | 3.2g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-140/25 |
Blue Photoluminescent Pigment Description:
Blue-Green Photoluminescent Pigment Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Blue-Green Photoluminescent Pigment Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Blue Photoluminescent Pigment| Catalog No. | NCZ-MNO-140/25 |
| Molecular Formula | CaAl2O4:Eu,Nd |
| Day Color | Light grey |
| Glowing Color | Pure blue |
| Compositions | Alkaline earth aluminate |
| Formula | CaAl2O4:Eu,Nd | ||
| Composition | Alkaline earth aluminate | ||
| Day Color | Light grey | ||
| Night Color | Pure blue | ||
| Specific Gravity | 3.2g/cm3 | ||
| Excitation wavelength | 240~440nm | ||
| Particle size (D50) μm | 15-25 | 35-45 | 65-75 |
| Glowing time (DIN 67510) | ≥12 hours | ||
Blue-Green Photoluminescent Gravel Powder
Blue-Green Photoluminescent Gravel Powder
| Product | Blue-Green Photoluminescent Gravel Powder |
| CAS No. | N/A |
| Appearance | Blue-Green, Light Yellow Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | Sr4Al14O25:Eu,Dy |
| Density | 2.3g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-186/25 |
Blue-Green Photoluminescent Gravel Description:
Blue-Green Photoluminescent Gravel Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Blue-Green Photoluminescent Gravel Powder Related Information:
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Blue-Green Photoluminescent Gravel (RGR-BG)| Catalog No. | NCZ-MNO-186/25 |
| Compositions | Sr4Al14O25:Eu,Dy |
| Day Color | Light yellow |
| Glowing Color | Blue-green |
| Glowing Time | ≥8 hours (DIN 67510) |
| Product Category | NCZ-MNO-186/25 |
| Composition | Sr4Al14O25:Eu,Dy |
| Day color | Light yellow |
| Glow | blue-green |
| Particle size | 2-4, 5-8, 9-12 mm |
| Specific gravity | 2.3 g/cm3 |
| Surface Hardness | HRC 58 |
| Glowing time | ≥8 hours (DIN 67510) |
Blue-Green Photoluminescent Pigment Powder
Blue-Green Photoluminescent Pigment Powder
| Product | Blue-Green Photoluminescent Pigment Powder |
| CAS No. | 12004-37-4 |
| Appearance | Blue-Green Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | Sr4Al14O25:Eu,Dy |
| Density | 2.5 to 3.5g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-139/25 |
Blue-Green Photoluminescent Pigment Description:
Blue-Green Photoluminescent Pigment Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Blue-Green Photoluminescent Pigment Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Blue-green Photoluminescent Pigment| Catalog No. | NCZ-MNO-139/25 |
| Molecular Formula | Sr4Al14O25: Eu, Dy |
| Day Color | Yellowish |
| Glowing Color | Blue-green |
| Compositions | Alkaline earth aluminate |
| Formula | Sr4Al14O25: Eu, Dy | ||||
| Composition | Alkaline earth aluminate | ||||
| Day Color | Yellowish | ||||
| Night Color | Blue-green | ||||
| Specific Gravity | 3.6g/cm3 | ||||
| Excitation wavelength | 240~440nm | ||||
| Particle size (D50) μm | 10-20 | 20-30 | 40-50 | 75-85 | 120-150 |
| Glowing time (DIN 67510) | ≥12 hours | ||||
Fluoride Phosphor Powder
Fluoride Phosphor Powder
| Product | Fluoride Phosphor Powder |
| CAS No. | 7647-19-0 |
| Appearance | Red Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | A2MF6 |
| Density | 2.5-3.5g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-174/25 |
Fluoride Phosphor Description:
Fluoride Phosphor Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Fluoride Phosphor Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Fluoride Phosphor Powder| Catalog No. | NCZ-MNO-174/25 |
| Color | Red |
| Particle Size | D50 15-40 um |
| Excitation Range | 440nm-470nm |
| Color Point (x,y) | 0.691-0.693, 0.308-0.306 |
| Emission Peak Wavelength | 630nm-640nm |
| Product | Peak Wavelength | Color Point | Particle Size | |
| p (nm) | CIEx | CIEy | D50V (μm) | |
| FR6931-04A | 632 | 0.693 | 0.307 | 23 |
| FR6931-04B | 632 | 0.693 | 0.307 | 25 |
| FR 6931-04C | 628 | 0.693 | 0.307 | 25 |

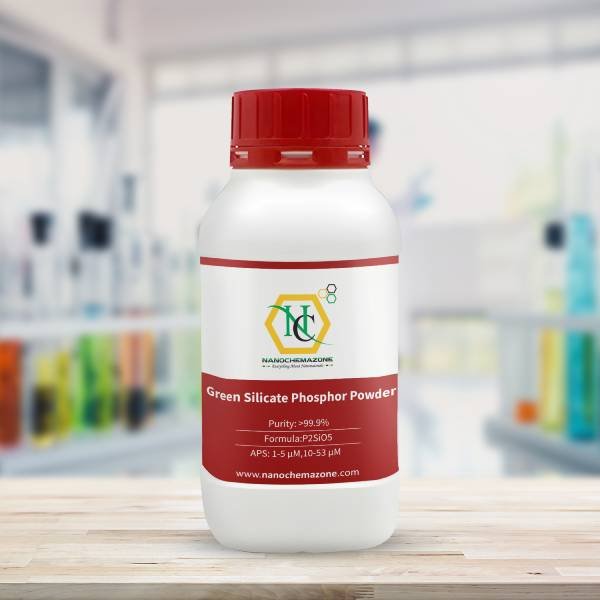

Green Silicate Phosphor Powder
Green Silicate Phosphor Powder
| Product | Green Silicate Phosphor Powder |
| CAS No. | N/A |
| Appearance | Green Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | P2SiO5 |
| Density | 5.1g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-184/25 |
Green Silicate Phosphor Description:
Green Silicate Phosphor Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Green Silicate Phosphor Powder Related Information:
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Green Silicate Phosphors| Catalog No. | NCZ-MNO-184/25 |
| Material | Silicate |
| Color | Green |
| Peak wavelength | 540±2nm, 525±2nm |
| Excitation Range | 275-460μm |
| Item | GSP540 | GSP525 |
| Material | silicate | silicate |
| Density | 5.1 g/cm3 | 5.1 g/cm3 |
| Peak Wavelength | 540±2 nm | 525±2 nm |
| Domain Wavelength | 557±1 nm | 546±1 nm |
| CIE 1931 | x=0.367±0.002 | x=0.271±0.002 |
| y=0.592±0.002 | y=0.626±0.002 | |
| Particle Size | D10=5±1 μm | D10=7±1 μm |
| D50=15±1 μm | D50=18±1 μm | |
| D90=19±1 μm | D90=22±1 μm | |
| FWHM | 75±2 nm | 66±2 nm |
| Excitation Range | 275 μm-460 μm | 275 μm-460 μm |
KSF Phosphor Powder
KSF Phosphor Powder
| Product | KSF Phosphor Powder |
| CAS No. | N/A |
| Appearance | Red Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | K2SiF6: Mn4+ |
| Density | N/A |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-182/25 |
KSF Phosphor Powder Description:
It is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.KSF Phosphor Powder Related Information:
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. KSF Phosphor Powder| Catalog No. | NCZ-MNO-182/25 |
| Color | Red |
| Compositions | K2SiF6: Mn4+ |
| Particle Size | 21, 24, 30 (D50/μm) |
| Category | Product Name | Specifications of Product | |||||
| Relative Brightness | Chromaticity Coordinates | Chromaticity Coordinates | Peak Wavelength | Particle Size (D50/μm) | FWHM (nm) | ||
| Fluoride Phosphor | ZYPF631S | 115-125 | 0.629±0.003 | 0.307±0.003 | 631±2 | 21±2.5 | 9 |
| ZYPF631M | 115-125 | 0.629±0.003 | 0.307±0.003 | 631±2 | 24±2.5 | 9 | |
| ZYPF631B | 115-125 | 0.629±0.003 | 0.307±0.003 | 631±2 | 30±2.5 | 9 | |
LED Red Phosphor Powder
LED Red Phosphor Powder
LED Red Phosphor Description
LED Red Phosphor is a rare earth-activated fluorogermanate, which is a deep red phosphor different from sulfide. It has stable chemical properties, excellent aging resistance, wide-spectrum excitation performance, and small-band selectivity of the chip. Under 400-450nm excitation, the powder can achieve deep red luminescence with an emission wavelength of around 655nm.
LED Red Phosphor Specification
LED Red Phosphor Applications
LED Red Phosphor Powder can be used in the production of backlights, car lights, and other lighting fixtures.
LED Red Phosphor Packaging
Our LED Red Phosphor is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
| Product | LED Red Phosphor Powder |
| CAS No. | 7723-14-0 |
| Appearance | Red Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | K2SiF6:Mn4 |
| Density | 2.8g/cm3 |
| Molecular Weight | 285.5g/mol |
| Product Codes | NCZ-MNO-137/25 |
LED Red Phosphor Description:
LED Red Phosphor Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.LED Red Phosphor Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. LED Red Phosphor| Catalog No. | NCZ-MNO-137/25 |
| Emission Peak Wavelength | 655 nm |
| Color Coordinate | X=0.681, y=0.296 |
| Particle Size | 10±1 μm (D50) |
| Compositions | Fluorogermanate phosphor |
| Model | LMFG-6829 |
| Specific Gravity (g/cm3) | 3.85 |
| Emission Peak Wavelength (nm) | 655 |
| Excitation Wavelength (nm) | 400-450 |
| Color Coordinate | X=0.681, y=0.296 |
| Particle Size (D50) | 10±1 μm |
Lutetium Aluminum Phosphor Powder
Lutetium Aluminum Phosphor Powder
| Product | Lutetium Aluminum Phosphor Powder |
| CAS No. | 12253-68-8 |
| Appearance | Green Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | Lu3Al5O12 |
| Density | 6.71g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-181/25 |
Lutetium Aluminum Phosphor Description:
Lutetium Aluminum Phosphor Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Lutetium Aluminum Phosphor Powder Related Information:
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Lutetium Aluminum (LuAG) Phosphor Powder (CAS No. 12253-68-8)| Catalog No. | NCZ-MNO-181/25 |
| Color | Green |
| Excitation Range | 440-460 μm |
| Compositions | Lu3Al5O12: Ce3+ |
| Model | Color | CIE 1931 | Spectral Performance | ||
| x | y | Chip Excitation Wavelength (nm) | Peak Wavelength λp (nm) | ||
| LMY-3457-B | yellow-green | 0.347 | 0.575 | 440-470 | 513 |
| LMY-3657-B | yellow-green | 0.361 | 0.573 | 440-470 | 516 |
| LMY-3857-B | yellow-green | 0.382 | 0.564 | 440-470 | 523 |
| LMY-3957-B | yellow-green | 0.394 | 0.565 | 440-470 | 524 |
| LMY-4056-B | yellow-green | 0.402 | 0.560 | 440-470 | 527 |
Nitride Phosphor Powder
Nitride Phosphor Powder
| Product | Nitride Phosphor Powder |
| CAS No. | 52934-12-0 |
| Appearance | Orange Red Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | PN |
| Density | 2.8 to 3.1g/cm3 |
| Molecular Weight | 48g/mol |
| Product Codes | NCZ-MNO-172/25 |
Nitride Phosphor Description:
Nitride Phosphor Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Nitride Phosphor Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters.  Nitride Phosphor Powder| Catalog No. | NCZ-MNO-172/25 |
| Color | Orange, Red |
| Particle Size | D50 7-18 um |
| Excitation Range | 360nm-470nm |
| Color Point (x,y) | 0.612-0.68, 0.387-0.318 |
| Emission Peak Wavelength | 610nm-670nm |
| Type | Model | Color | Chromaticity Coordinates CIE 1931 | Spectral Performance | ||
| x | y | Chip Excitation Wavelength (nm) | Peak Wavelength λp (nm) | |||
| Nitride | 6237 | red | 0.634 | 0.366 | 350-550 | 612 |
| 6336 | light red | 0.633 | 0.366 | 350-550 | 615 | |
| 6534 | red | 0.653 | 0.340 | 350-550 | 625 | |
| 6633 | Pink | 0.663 | 0.335 | 350-550 | 630 | |
| 6831 | deep red | 0.680 | 0.319 | 350-550 | 645 | |
Orange Photoluminescent Pigment Powder
Orange Photoluminescent Pigment Powder
Orange Photoluminescent Pigment Description
Orange Photoluminescent Pigment is a sulfide luminescent material. It is characterized by fast light absorption and bright apparent and luminous colors. It will dissolve due to water absorption when exposed to the air and needs to be stored in an airtight manner. It will slowly decompose under long-term UV exposure.
Orange Photoluminescent Pigment Specification
Orange Photoluminescent Pigment Applications
Orange Photoluminescent Pigment Powder can achieve the luminous function of the medium in various transparent media such as coatings, inks, paints, plastics, printing pastes, ceramics, glass, fibers, etc. It is used in emergency signage, safety markings, exit signs, and other items where visibility in low-light conditions is essential.
Orange Photoluminescent Pigment Packaging
Our Orange Photoluminescent Pigment is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
| Product | Orange Photoluminescent Pigment Powder |
| CAS No. | 3520-72-7 |
| Appearance | Orange Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | Sr4Al14O25:Eu,Dy |
| Density | 3.1g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-150/25 |
Orange Photoluminescent Pigment Description:
Orange Photoluminescent Pigment Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Orange Photoluminescent Pigment Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Orange Photoluminescent Pigment| Catalog No. | NCZ-MNO-150/25 |
| Color | Orange |
| Glowing Color | Orange |
| Compositions | (Ca1-XSrX)S:Eu (x=0-1.0) |
| Afterglow Brightness Range (mcd/m2) | ≥95 |
| Product Category | RO |
| Apparent color | orange |
| Glow color | orange |
| Main components | (Ca1-XSrX)S:Eu (x=0-1.0) |
| Excitation wavelength range (nm) | 400-580 |
| Luminescence wavelength peak (nm) | 630 |
| Central particle size range (μm) | 20-40 |
| Afterglow brightness range (mcd/m2) | ≥95 |
| Afterglow time | >1 Hour |
| Lightfastness | ≥100 hours |
| Chemical stability | Easy to deliquesce |
| Operating temperature | ≤200℃ |
| Specific gravity (g/cm3) | 3.1 |
Orange Silicate LED Phosphor Powder
Orange Silicate LED Phosphor Powder
| Product | Orange Silicate LED Phosphor Powder |
| CAS No. | N/A |
| Appearance | Orange Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | Sr3Al2Si3O12:Eu3 |
| Density | 4.8g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-147/25 |
Orange Silicate LED Phosphor Description:
Orange Silicate LED Phosphor Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Orange Silicate LED Phosphor Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Orange Silicate LED Phosphor Powder| Catalog No. | NCZ-MNO-147/25 |
| Appearance | Orange Powder |
| Product Name | Orange Silicate LED Phosphor Powder |
| Emission Color | Orange |
| Relative Intensity | 100±2% |
| Peak Wavelength (nm) | 600±1 |
| CIE-X | 0.582±0.002 |
| CIE-Y | 0.416±0.002 |
| Density (g/cm3) | 4.8 |
| Particle Size (μm) | 15±2.0 |
| Chip Size (nm) | 445-470 |
Orange-Red Photoluminescent Pigment Powder
Orange-Red Photoluminescent Pigment Powder
| Product | Orange-Red Photoluminescent Pigment Powder |
| CAS No. | 3520-72-7 |
| Appearance | Light Gray and Orange-Red Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | Y2O2S:Eu,Ln |
| Density | 3.8g/cm3 |
| Molecular Weight | 312.3g/mol |
| Product Codes | NCZ-MNO-145/25 |
Orange-Red Photoluminescent Pigment Description:
Orange-Red Photoluminescent Pigment Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Orange-Red Photoluminescent Pigment Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Orange-red Photoluminescent Pigment (PRO-5M)| Catalog No. | NCZ-MNO-145/25 |
| Molecular Formula | Y2O2S:Eu,Ln |
| Day Color | Light grey |
| Glowing Color | Orange-red |
| Compositions | Alkaline earth aluminate |
| Formula | Y2O2S:Eu,Ln |
| Composition | Alkaline earth aluminate |
| Day Color | Light grey |
| Night Color | Orange-red |
| Specific Gravity | 3.8g/cm3 |
| Excitation wavelength | 240~440nm |
| Particle size (D50) μm | 15-45 |
| Glowing time (DIN 67510) | ≥6 hours |
Oxynitride LED Phosphor Powder
Oxynitride LED Phosphor Powder
| Product | Oxynitride LED Phosphor Powder |
| CAS No. | N/A |
| Appearance | Green Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | SrAl2O4:Eu:Dy |
| Density | 2.7g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-148/25 |
Oxynitride LED Phosphor Description:
Oxynitride LED Phosphor Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Oxynitride LED Phosphor Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Oxynitride LED Phosphor Powder| Catalog No. | NCZ-MNO-148/25 |
| Appearance | Green Powder |
| Product Name | Oxynitride LED Phosphor Powder |
| Light Color | Blue |
| Relative Intensity | 100±2% |
| Peak Wavelength (nm) | 490±1 |
| CIE-X | 0.076±0.002 |
| CIE-Y | 0.462±0.002 |
| Density (g/) | 2.7 |
| Particle Size () | 15±2.0 |
| Chip Size (nm) | 445-470 |
Purple Photoluminescent Pigment Powder
Purple Photoluminescent Pigment Powder
| Product | Purple Photoluminescent Pigment Powder |
| CAS No. | 215247-95-3 |
| Appearance | Light Gray and Purple Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | CaAl2O4:Eu,Nd |
| Density | N/A |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-141/25 |
Purple Photoluminescent Pigment Description:
Purple Photoluminescent Pigment Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Purple Photoluminescent Pigment Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Purple Photoluminescent Pigment| Catalog No. | NCZ-MNO-141/25 |
| Molecular Formula | CaAl2O4:Eu,Nd |
| Day Color | Light grey |
| Glowing Color | Purple |
| Compositions | Alkaline earth aluminate |
| Formula | CaAl2O4:Eu,Nd | |
| Composition | Alkaline earth aluminate | |
| Day Color | Light grey | |
| Night Color | purple | |
| Specific Gravity | 3.2g/cm3 | |
| Excitation wave length | 240~440nm | |
| Particle size (D50) μm | 35-45 | 65-75 |
| Glowing time (DIN 67510) | ≥8 hours | |
Red Nitride Phosphor Powder
Red Nitride Phosphor Powder
| Product | Red Nitride Phosphor Powder |
| CAS No. | N/A |
| Appearance | Orange Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | Ca,SrAlSiN3:Eu2 |
| Density | 3.1g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-151/25 |
Red Nitride Phosphor Description:
Red Nitride Phosphor Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Red Nitride Phosphor Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Red Nitride Phosphor Powder (YG610)| Catalog No. | NCZ-MNO-151/25 |
| Appearance | Orange Powder |
| Density | 3.1 g/cm3 |
| Particle Size | 10±2.0 μm |
| Product Name | Red Nitride Phosphor Powder |
| Emission Color | Red |
| Relative Intensity | 100±2% |
| Peak Wavelength (nm) | 610±1 |
| CIE-X | 0.610±0.002 |
| CIE-Y | 0.390±0.002 |
| Density (g/cm3) | 3.1 |
| Particle Size (μm) | 10±2.0 |
| Chip Size (nm) | 445-470 |
Red Nitride Phosphor Powder
Red Nitride Phosphor Powder
| Product | Red Nitride Phosphor Powder |
| CAS No. | 7723-14-0 |
| Appearance | Red-Orange Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | (Ca,Sr)AlSiN3:Eu2 |
| Density | 3.6g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-152/25 |
Red Nitride Phosphor Description:
Red Nitride Phosphor Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing. Red Nitride Phosphor Powder Related Information : Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Red Nitride Phosphor Powder (YG612)| Catalog No. | PNCZ-MNO-152/25 |
| Appearance | Red Orange Powder |
| Density | 3.6 g/cm3 |
| Particle Size | 10±1.0, 5±1.0 μm |
| Product Name | Red Nitride Phosphor Powder |
| Emission Color | Red |
| Relative Intensity | 100±2% |
| Peak Wavelength (nm) | 612±1 |
| CIE-X | 0.634±0.002 |
| CIE-Y | 0.366±0.002 |
| Density (g/cm3) | 3.6 |
| Particle Size (μm) | 10±1.0, 5±1.0 |
| Excitation range (nm) | 350-550 |
Red Nitride Phosphor Powder
Red Nitride Phosphor Powder
| Product | Red Nitride Phosphor Powder |
| CAS No. | 7723-14-0 |
| Appearance | Red-Orange Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | Sr,CaAlSiN3:Eu |
| Density | 3.1g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-153/25 |
Red Nitride Phosphor Description:
Red Nitride Phosphor Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Red Nitride Phosphor Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Red Nitride Phosphor Powder (YG615)| Catalog No. | NCZ-MNO-153/25 |
| Appearance | Red Orange Powder |
| Density | 3.1 g/cm3 |
| Particle Size | 13±2.0 μm |
| Product Name | Red Nitride Phosphor Powder (YG615) |
| Emission Color | Red |
| Relative Intensity | 100±2% |
| Peak Wavelength (nm) | 615±1 |
| CIE-X | 0.629±0.002 |
| CIE-Y | 0.371±0.002 |
| Density (g/cm3) | 3.1 |
| Particle Size (μm) | 13±2.0 |
| Chip Size (nm) | 445-470 |
Red Nitride Phosphor Powder
Red Nitride Phosphor Powder
| Product | Red Nitride Phosphor Powder |
| CAS No. | 7723-14-0 |
| Appearance | Red-Orange Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | Sr,CaAlSiN3:Eu2 |
| Density | 3.1g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-156/25 |
Red Nitride Phosphor Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Red Nitride Phosphor Powder (YG625)| Catalog No. | NCZ-MNO-156/25 |
| Appearance | Red Orange Powder |
| Product Name | Red Nitride Phosphor Powder |
| Emission Color | Red |
| Relative Intensity | 100±2% |
| Peak Wavelength (nm) | 625±1 |
| CIE-X | 0.653±0.002 |
| CIE-Y | 0.340±0.002 |
| Density (g/cm3) | 3.6 |
| Particle Size (μm) | 10±1.0, 5±1.0 |
| Excitation range (nm) | 350-550 |
Red Nitride Phosphor Powder
Red Nitride Phosphor Powder
| Product | Red Nitride Phosphor Powder |
| CAS No. | 7723-14-0 |
| Appearance | Red-Orange Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | Sr,CaAlSiN3:Eu2 |
| Density | 3.6g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-158/25 |
Red Nitride Phosphor Description:
Red Nitride Phosphor Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Red Nitride Phosphor Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Red Nitride Phosphor Powder (YG630)| Catalog No. | NCZ-MNO-158/25 |
| Appearance | Red Orange Powder |
| Product Name | Red Nitride Phosphor Powder (YG630) |
| Emission Color | Pink Red |
| Relative Intensity | 100±2% |
| Peak Wavelength (nm) | 630±1 |
| CIE-X | 0.663±0.002 |
| CIE-Y | 0.335±0.002 |
| Density (g/cm3) | 3.6 |
| Particle Size (μm) | 10±1.0, 5±1.0 |
| Excitation range (nm) | 350-550 |
Red Nitride Phosphor Powder
Red Nitride Phosphor Powder
| Product | Red Nitride Phosphor Powder |
| CAS No. | N/A |
| Appearance | Red-Orange Powder |
| Purity  | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS   | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | Sr,CaAlSiN3:Eu2 |
| Density | 3.6g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-DCY-159/25 |
Red Nitride Phosphor Powder Description:
Red Nitride Phosphor Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricingRed Nitride Phosphor Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Red Nitride Phosphor Powder (YG645)| Catalog No. | NCZ-DCY-159/25 |
| Appearance | Red Orange Powder |
| Product Name | Red Nitride Phosphor Powder (YG645) |
| Emission Color | Pink Red |
| Relative Intensity | 100±2% |
| Peak Wavelength (nm) | 645±1 |
| CIE-X | 0.680±0.002 |
| CIE-Y | 0.319±0.002 |
| Density (g/cm3) | 3.6 |
| Particle Size (μm) | 10±1.0, 5±1.0 |
| Excitation range (nm) | 350-550 |
Red Nitride Phosphor Powder
Red Nitride Phosphor Powder
| Product | Red Nitride Phosphor Powder |
| CAS No. | 7723-14-0 |
| Appearance | Red-Orange Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS& | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | Ca,SrAlSiN3:Eu2 |
| Density | 3.1g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-160/25 |
Red Nitride Phosphor Description:
Red Nitride Phosphor Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Red Nitride Phosphor Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Red Nitride Phosphor Powder (YG650)| Catalog No. | NCZ-MNO-160/25 |
| Appearance | Red Orange Powder |
| Product Name | Red Nitride Phosphor Powder (YG650) |
| Emission Color | Red |
| Relative Intensity | 100±2% |
| Peak Wavelength (nm) | 650±1 |
| CIE-X | 0.675±0.002 |
| CIE-Y | 0.325±0.002 |
| Density (g/cm3) | 3.1 |
| Particle Size (μm) | 13±2.0 |
| Chip Size (nm) | 445-470 |
Red Nitride Phosphor Powder
Red Nitride Phosphor Powder
| Product | Red Nitride Phosphor Powder |
| CAS No. | 7723-14-0 |
| Appearance | Red-Orange Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | Sr,CaAlSiN3:Eu2 |
| Density | 3.1g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-161/25 |
Red Nitride Phosphor Description:
Red Nitride Phosphor Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Red Nitride Phosphor Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Red Nitride Phosphor Powder (YG660)| Catalog No. | NCZ-MNO-161/25 |
| Appearance | Red Orange Powder |
| Product Name | Red Nitride Phosphor Powder |
| Emission Color | Red |
| Relative Intensity | 100±2% |
| Peak Wavelength (nm) | 650±1 |
| CIE-X | 0.675±0.002 |
| CIE-Y | 0.325±0.002 |
| Density (g/cm3) | 3.1 |
| Particle Size (μm) | 13±2.0 |
| Chip Size (nm) | 445-470 |
Red Nitride Phosphor Powder
Red Nitride Phosphor Powder
| Product | Red Nitride Phosphor Powder |
| CAS No. | 7723-14-0 |
| Appearance | Red-Orange Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | Sr,CaAlSiN3:Eu2 |
| Density | 3.1g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-162/25 |
Red Nitride Phosphor Description:
Red Nitride Phosphor Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Red Nitride Phosphor Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Red Nitride Phosphor Powder (YG670)| Catalog No. | NCZ-MNO-162/25 |
| Appearance | Red Orange Powder |
| Product Name | Red Nitride Phosphor Powder |
| Emission Color | Red |
| Relative Intensity | 100±2% |
| Peak Wavelength (nm) | 668±1 |
| CIE-X | 0.697±0.002 |
| CIE-Y | 0.302±0.002 |
| Density (g/cm3) | 3.1 |
| Particle Size (μm) | 13±2.0 |
| Chip Size (nm) | 445-470 |
Red Nitride Phosphor Powder
Red Nitride Phosphor Powder
| Product | Red Nitride Phosphor Powder |
| CAS No. | 7723-14-0 |
| Appearance | Red-Orange Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | Sr,CaAlSiN3:Eu2 |
| Density | 3.6g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-183/25 |
Red Nitride Phosphor Description:
Red Nitride Phosphor Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Red Nitride Phosphor Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Red Nitride Phosphor Powder (YG630)| Catalog No. | NCZ-MNO-183/25 |
| Appearance | Red Orange Powder |
| Product Name | Red Nitride Phosphor Powder (YG630) |
| Emission Color | Pink Red |
| Relative Intensity | 100±2% |
| Peak Wavelength (nm) | 630±1 |
| CIE-X | 0.663±0.002 |
| CIE-Y | 0.335±0.002 |
| Density (g/cm3) | 3.6 |
| Particle Size (μm) | 10±1.0, 5±1.0 |
| Excitation range (nm) | 350-550 |

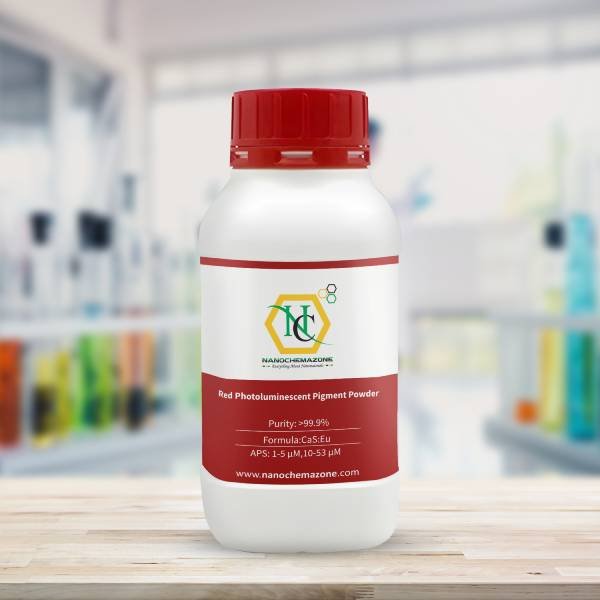

Red Photoluminescent Pigment Powder
Red Photoluminescent Pigment Powder
| Product | Red Photoluminescent Pigment Powder |
| CAS No. | 12253-68-8 |
| Appearance | Red Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | CaS:Eu |
| Density | 1.33g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-146/25 |
Red Photoluminescent Pigment Description:
Red Photoluminescent Pigment Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Red Photoluminescent Pigment Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Red Photoluminescent Pigment| Catalog No. | NCZ-MNO-146/25 |
| Color | Red |
| Glowing Color | Red |
| Compositions | (Ca1-XSrX)S:Eu (x=0-1.0) |
| Afterglow Brightness Range (mcd/m2) | ≥45 |
| Product Category | RR |
| Apparent color | red |
| Glow color | red |
| Main components | (Ca1-XSrX)S:Eu (x=0-1.0) |
| Excitation wavelength range (nm) | 400-580 |
| Luminescence wavelength peak (nm) | 650 |
| Central particle size range (μm) | 20-40 |
| Afterglow brightness range (mcd/m2) | ≥45 |
| Afterglow time | >1 Hour |
| Lightfastness | ≥100 hours |
| Chemical stability | Easy to deliquesce |
| Operating temperature | ≤200℃ |
| Specific gravity (g/cm3) | 3.1 |
Red-Orange Photoluminescent Pigment Powder
Red-Orange Photoluminescent Pigment Powder
| Product | Red-Orange Photoluminescent Pigment Powder |
| CAS No. | 12253-68-8 |
| Appearance | Red-Orange Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | Y2O2S:Eu,Ln |
| Density | 3.6g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-154/25 |
Red-Orange Photoluminescent Pigment Description:
Red-Orange Photoluminescent Pigment Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Red-Orange Photoluminescent Pigment Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Red-orange Photoluminescent Pigment SPMR-4| Catalog No. | NCZ-MNO-154/25 |
| Color | Red |
| Glowing Color | Orange |
| Afterglow Brightness Range (mcd/m2) | ≥75 |
| Product Category | SPMR-4 |
| Product Color | Red |
| Glow Color | orange |
| Central particle size range (μm) | 20-40 |
| Afterglow brightness range (mcd/m2) | ≥75 |
| Afterglow time | ≥3 hours |
| Lightfastness | ≥100 hours |
| Chemical stability | good |
| Operating temperature | ≤160℃ |
| Specific gravity (g/cm3) | 3.6 |
Silicate Green Phosphor Powder
Silicate Green Phosphor Powder
| Product | Silicate Green Phosphor Powder |
| CAS No. | N/A |
| Appearance | Green Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | (Ca,Sr,Ba)3MgSi2O8:Eu2 |
| Density | N/A |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-178/25 |
Silicate Green Phosphor Description:
Silicate Green Phosphor Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Silicate Green Phosphor Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Silicate Green Phosphor Powder| Catalog No. | NCZ-MNO-178/25 |
| Particle Size | D50 10-20 um |
| Excitation Range | 360nm-500nm |
| Color Point (x,y) | 0.226-0.371, 0.584-0.620 |
| Emission Peak Wavelength | 516nm-540nm |
- High efficiency, >96% • Narrow emission peak, 70-82nm FWHM • Broad excitation range, UV-Violet-Blue
| Product | Peak Wavelength | Color Point | Particle Size (μm) | |
| p (nm) | CIEx | CIEy | D50V | |
| 2262 | 516 | 0.226 | 0.620 | 15.5 |
| 2762 | 526 | 0.286 | 0.626 | 15.5 |
| 3261 | 530 | 0.320 | 0.610 | 15.5 |
| 3560 | 535 | 0.346 | 0.597 | 15.5 |
| 3759 | 540 | 0.371 | 0.584 | 15.5 |
Silicate Phosphor Powder
Silicate Phosphor Powder
| Product | Silicate Phosphor Powder |
| CAS No. | 1344-09-8 |
| Appearance | Yellow, Green, Orange Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | M2SiO4 |
| Density | 3.9 to-5.1g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-169/25 |
Silicate Phosphor Description:
Silicate Phosphor Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Silicate Phosphor Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Silicate Phosphor Powder| Catalog No. | NCZ-MNO-169/25 |
| Color | Yellow, Green, Orange |
| Particle Size | D50 10-20 um |
| Excitation Range | 360nm-500nm |
| Color Point (x,y) | 0.226-0.573, 0.419-0.620 |
| Emission Peak Wavelength | 505nm-590nm |
- High efficiency, >96%
- Wide choice of colors: green, yellow, orange, 505-590nm
- Narrow emission peak, 70-82nm FWHM
- Broad excitation range, UV-Violet-Blue
| Type | Model | Color | Chromaticity Coordinates CIE 1931 | Spectral Performance | ||
| x | y | Chip Excitation Wavelength (nm) | Peak Wavelength λp (nm) | |||
| Silicate | LMS-1858-B | green | 0.187 | 0.588 | 360-480 | 505 |
| LMS-2564-B | green | 0.258 | 0.646 | 360-480 | 517 | |
| LMS-2762-B | green | 0.282 | 0.638 | 360-480 | 521 | |
| LMS-3560-B | green | 0.350 | 0.606 | 360-480 | 529 | |
| LMS-3957-B | light yellow | 0.395 | 0.575 | 360-480 | 538 | |
| LMS-4056-B | light yellow | 0.405 | 0.568 | 360-480 | 541 | |
| LMS-4254-B | light yellow | 0.425 | 0.545 | 360-480 | 544 | |
| LMS-4453-B | yellow | 0.443 | 0.534 | 360-480 | 550 | |
| LMS-4949-B | dark yellow | 0.494 | 0.493 | 360-480 | 565 | |
| LMS-5445-B | orange red | 0.542 | 0.456 | 360-500 | 577 | |
| LMS-5444-B | orange red | 0.549 | 0.448 | 360-500 | 580 | |
| LMS-5544-B | orange red | 0.558 | 0.440 | 360-500 | 583 | |
| LMS-5742-B | orange red | 0.575 | 0.423 | 360-500 | 585 | |
| LMS-5841-B | orange red | 0.583 | 0.415 | 360-500 | 590 | |
| LMS-5940-B | orange red | 0.593 | 0.406 | 360-500 | 592 | |
Silicate Yellow Phosphor Powder
Silicate Yellow Phosphor Powder
| Product | Silicate Yellow Phosphor Powder |
| CAS No. | N/A |
| Appearance | Yellow Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | P4 |
| Density | N/A |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO179/25 |
Silicate Yellow Phosphor Description:
Silicate Yellow Phosphor Powder  is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Silicate Yellow Phosphor Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Silicate Yellow Phosphor Powder| Catalog No. | NCZ-MNO179/25 |
| Particle Size | D50 10-20 um |
| Excitation Range | 360nm-500nm |
| Color Point (x,y) | 0.402-0.459, 0517-0.563 |
| Emission Peak Wavelength | 551nm-570nm |
- High efficiency, >96% • Narrow emission peak, 70-82nm FWHM • Broad excitation range, UV-Violet-Blue
| Product | Peak Wavelength | Color Point | Particle Size (μm) | |
| p (nm) | CIEx | CIEy | D50V | |
| 4156-02-16 | 551 | 0.402 | 0.563 | 16 |
| 4156-05-24 | 550 | 0.402 | 0.563 | 24 |
| 4254-02-16 | 558 | 0.423 | 0.547 | 16 |
| 4354-05-23 | 561 | 0.437 | 0.538 | 23 |
| 4453-02-A16 | 563 | 0.442 | 0.533 | 16 |
| 4453-05-20 | 563 | 0.442 | 0.534 | 21 |
| 4553-05-23 | 564 | 0.448 | 0.530 | 23 |
| 4651-05-23 | 567 | 0.455 | 0.523 | 23 |
| 4651 | 570 | 0.459 | 0.517 | 15 |
Sky-Blue Photoluminescent Gravel Powder
Sky-Blue Photoluminescent Gravel Powder
| Product | Sky-Blue Photoluminescent Gravel Powder |
| CAS No. | N/A |
| Appearance | Light Gray or Blue Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | SrAl2O4:Eu,Dy |
| Density | N/A |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-185/25 |
Sky-Blue Photoluminescent Gravel Description:
Sky-Blue Photoluminescent Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Sky-Blue Photoluminescent Powder Related Information:
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Sky-blue Photoluminescent Gravel (RGR-SB)| Catalog No. | NCZ-MNO-185/25 |
| Compositions | CaAl2O4:Eu,Nd |
| Day Color | Light grey |
| Glowing Color | Pure blue |
| Glowing Time | ≥8 hours (DIN 67510) |
| Product Category | RGR-SB |
| Composition | CaAl2O4:Eu,Nd |
| Day color | Light grey |
| Glow | Pure blue |
| Particle size | 2-4, 5-8, 9-12 mm |
| Specific gravity | 2.1g/cm3 |
| Surface Hardness | HRC 58 |
| Glowing time | ≥8 hours (DIN 67510) |
UV Phosphor Powder
UV Phosphor Powder
| Product | UV Phosphor Powder |
| CAS No. | 1314-98-3 |
| Appearance | Light White Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | ZnS:Cu |
| Density | 4.1g/cm3 |
| Molecular Weight | 97.47g/mol |
| Product Codes | NCZ-MNO-189/25 |
UV Phosphor Description:
UV Phosphor Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.UV Phosphor Powder Related Information:
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. UV Phosphor Powder| Catalog No. | NCZ-MNO-189/25 |
| Color | Light White |
| Particle Size | D50 3-20 um |
| Excitation Range | 254nm-365nm |
| Emission Peak Wavelength | 250nm-350nm |
White Photoluminescent Pigment Powder
White Photoluminescent Pigment Powder
| Product | White Photoluminescent Pigment Powder |
| CAS No. | 12004-37-4 |
| Appearance | Light Gray and White Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS& | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | CaAl2O4:Eu,Nd |
| Density | N/A |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-144/25 |
White Photoluminescent Pigment Description:
White Photoluminescent Pigment Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.White Photoluminescent Pigment Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. White Photoluminescent Pigment (PRW-5M)| Catalog No. | NCZ-MNO-144/25 |
| Molecular Formula | CaAl2O4:Eu,Nd |
| Day Color | Light grey |
| Glowing Color | White |
| Compositions | Alkaline earth aluminate |
| Formula | CaAl2O4:Eu,Nd |
| Composition | Alkaline earth aluminate |
| Day Color | Light grey |
| Night Color | White |
| Specific Gravity | 3.4g/cm3 |
| Excitation wave length | 240~440nm |
| Particle size (D50) μm | 35-45 |
| Glowing time (DIN 67510) | ≥6 hours |
Yellow Aluminate Phosphor Powder
Yellow Aluminate Phosphor Powder
| Product | Yellow Aluminate Phosphor Powder |
| CAS No. | 12004-37-4 |
| Appearance | Yellow Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | SrAl2O4 |
| Density | 4.6g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-164/25 |
Yellow Aluminate Phosphor Description:
Yellow Aluminate Phosphor Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Yellow Aluminate Phosphor Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Yellow Aluminate Phosphor Powder (YG550)| Catalog No. | NCZ-MNO-164/25 |
| CAS Number | 12004-37-4 |
| Appearance | Yellow Powder |
| Chemical Formula | SrAl2O4 |
| Compositions | Strontium aluminate |
| Product Name | Yellow Aluminate Phosphor Powder (YG550) |
| Emission Color | Yellow |
| Relative Intensity | 100±2% |
| Peak Wavelength (nm) | 550±1 |
| CIE-X | 0.438±0.002 |
| CIE-Y | 0.537±0.002 |
| Density (g/cm3) | 4.6 |
| Particle Size (μm) | 15±2.0 |
| Chip Size (nm) | 445-460 |
Yellow Aluminate Phosphor Powder
Yellow Aluminate Phosphor Powder
| Product | Yellow Aluminate Phosphor Powder |
| CAS No. | 12004-37-4 |
| Appearance | Yellow Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | SrAl2O4 |
| Density | 4.6g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-165/25 |
Yellow Aluminate Phosphor Description:
Yellow Aluminate Phosphor Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Yellow Aluminate Phosphor Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Yellow Aluminate Phosphor Powder (YG558)| Catalog No. | NCZ-MNO-165/25 |
| CAS Number | 12004-37-4 |
| Appearance | Yellow Powder |
| Chemical Formula | SrAl2O4 |
| Compositions | Strontium aluminate |
| Product Name | Yellow Aluminate Phosphor Powder (YG558) |
| Emission Color | Yellow |
| Relative Intensity | 100±2% |
| Peak Wavelength (nm) | 558±1 |
| CIE-X | 0.446±0.002 |
| CIE-Y | 0.532±0.002 |
| Density (g/cm3) | 4.6 |
| Particle Size (μm) | 15±2.0 |
| Chip Size (nm) | 445-460 |
Yellow Aluminate Phosphor Powder
Yellow Aluminate Phosphor Powder
| Product | Yellow Aluminate Phosphor Powder |
| CAS No. | 12004-37-4 |
| Appearance | Yellow Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | SrAl2O4 |
| Density | 4.6g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-166/25 |
Yellow Aluminate Phosphor Description:
Yellow Aluminate Phosphor Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Yellow Aluminate Phosphor Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Yellow Aluminate Phosphor Powder (YG560)| Catalog No. | NCZ-MNO-166/25 |
| CAS Number | 12004-37-4 |
| Appearance | Yellow Powder |
| Chemical Formula | SrAl2O4 |
| Compositions | Strontium aluminate |
| Product Name | Yellow Aluminate Phosphor Powder (YG560) |
| Emission Color | Yellow |
| Relative Intensity | 100±2% |
| Peak Wavelength (nm) | 560±1 |
| CIE-X | 0.446±0.002 |
| CIE-Y | 0.542±0.002 |
| Density (g/m3) | 4.6 |
| Particle Size (μm) | 6.0±2.0 |
| Chip Size (nm) | 445-460 |
Yellow Aluminate Phosphor Powder
Yellow Aluminate Phosphor Powder
| Product | Yellow Aluminate Phosphor Powder |
| CAS No. | 12004-37-4 |
| Appearance | Yellow Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | SrAl2O4 |
| Density | 4.6g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-167/25 |
Yellow Aluminate Phosphor Description:
Yellow Aluminate Phosphor Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Yellow Aluminate Phosphor Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Yellow Aluminate Phosphor Powder (YG580)| Catalog No. | NCZ-MNO-167/25 |
| CAS Number | 12004-37-4 |
| Appearance | Yellow Powder |
| Chemical Formula | SrAl2O4 |
| Compositions | Strontium aluminate |
| Product Name | Yellow Aluminate Phosphor Powder |
| Emission Color | Yellow |
| Relative Intensity | 100±2% |
| Peak Wavelength (nm) | 580±1 |
| CIE-X | 0.485±0.002 |
| CIE-Y | 0.500±0.002 |
| Density (g/cm3) | 4.6 |
| Particle Size (μm) | 6.0±2.0 |
| Chip Size (nm) | 445-460 |
Yellow Green Aluminate Phosphor Powder
Yellow Green Aluminate Phosphor Powder
| Product | Yellow Green Aluminate Phosphor Powder |
| CAS No. | 12004-37-4 |
| Appearance | Yellow Green Powder |
| Purity  | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS   | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | SrAl2O4 |
| Density | 6.8g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-173/25 |
Yellow Green Aluminate Phosphor Description:
Yellow Green Aluminate Phosphor Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Yellow Green Aluminate Phosphor Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Yellow Green Aluminate Phosphor Powder (YG513)| Catalog No. | NCZ-MNO-173/25 |
| CAS Number | 12004-37-4 |
| Appearance | Yellow Green Powder |
| Chemical Formula | SrAl2O4 |
| Compositions | Strontium aluminate |
| Product Name | Yellow Green Aluminate Phosphor Powder (YG513) |
| Emission Color | Yellow Green |
| Relative Intensity | 100±2% |
| Peak Wavelength (nm) | 513±1 |
| CIE-X | 0.341±0.002 |
| CIE-Y | 0.575±0.002 |
| Density (g/cm3) | 6.8 |
| Particle Size (μm) | 10±1.0, 15±1.0 |
| Chip Size (nm) | 440-470 |
Yellow Green Aluminate Phosphor Powder
Yellow Green Aluminate Phosphor Powder
| Product | Yellow Green Aluminate Phosphor Powder |
| CAS No. | 12004-37-4 |
| Appearance | Yellow Green Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | SrAl2O4 |
| Density | 4.1g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-168/25 |
Yellow Green Aluminate Phosphor Description:
Yellow Green Aluminate Phosphor Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Yellow Green Aluminate Phosphor Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Yellow Green Aluminate Phosphor Powder (YG530)| Catalog No. | NCZ-MNO-168/25 |
| CAS Number | 12004-37-4 |
| Appearance | Yellow Green Powder |
| Chemical Formula | SrAl2O4 |
| Compositions | Strontium aluminate |
| Product Name | Yellow Green Aluminate Phosphor Powder (YG530) |
| Emission Color | Yellow Green |
| Relative Intensity | 100±2% |
| Peak Wavelength (nm) | 530±1 |
| CIE-X | 0.373±0.002 |
| CIE-Y | 0.566±0.002 |
| Density (g/cm3) | 4.1 |
| Particle Size (μm) | 15±2.0 |
| Chip Size (nm) | 445-470 |
Yellow Green Aluminate Phosphor Powder
Yellow Green Aluminate Phosphor Powder
| Product | Yellow Green Aluminate Phosphor Powder |
| CAS No. | 12004-37-4 |
| Appearance | Yellow Green Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | SrAl2O4 |
| Density | 4.1g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-170/25 |
Yellow Green Aluminate Phosphor Description:
Yellow Green Aluminate Phosphor Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Yellow Green Aluminate Phosphor Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Yellow Green Aluminate Phosphor Powder (YG533)| Catalog No. | NCZ-MNO-170/25 |
| CAS Number | 12004-37-4 |
| Appearance | Yellow Green Powder |
| Chemical Formula | SrAl2O4 |
| Compositions | Strontium aluminate |
| Product Name | Yellow Green Aluminate Phosphor Powder |
| Emission Color | Yellow Green |
| Relative Intensity | 100±2% |
| Peak Wavelength (nm) | 533±1 |
| CIE-X | 0.382±0.002 |
| CIE-Y | 0.564±0.002 |
| Density (g/cm3) | 4.1 |
| Particle Size (μm) | 15±2.0 |
| Chip Size (nm) | 445-470 |
Yellow Green Aluminate Phosphor Powder
Yellow Green Aluminate Phosphor Powder
| Product | Yellow Green Aluminate Phosphor Powder |
| CAS No. | 12004-37-4 |
| Appearance | Yellow Green Powder |
| Purity  | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS   | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | SrAl2O4 |
| Density | 4.1g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-171/25 |
Yellow Green Aluminate Phosphor Description:
Yellow Green Aluminate Phosphor Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Yellow Green Aluminate Phosphor Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Yellow Green Aluminate Phosphor Powder (YG535)| Catalog No. | NCZ-MNO-171/25 |
| CAS Number | 12004-37-4 |
| Appearance | Yellow Green Powder |
| Chemical Formula | SrAl2O4 |
| Compositions | Strontium aluminate |
| Product Name | Yellow Green Aluminate Phosphor Powder (YG535) |
| Emission Color | Yellow Green |
| Relative Intensity | 100±2% |
| Peak Wavelength (nm) | 535±1 |
| CIE-X | 0.391±0.002 |
| CIE-Y | 0.560±0.002 |
| Density (g/cm3) | 4.1 |
| Particle Size (μm) | 15±2.0 |
| Chip Size (nm) | 445-470 |
Yellow Silicate LED Phosphor Powder
Yellow Silicate LED Phosphor Powder
| Product | Yellow Silicate LED Phosphor Powder |
| CAS No. | N/A |
| Appearance | Yellow Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | Ca2SiO4:Ce3 |
| Density | 4.6g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-175/25 |
Yellow Silicate LED Phosphor Description:
Yellow Silicate LED Phosphor Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Yellow Silicate LED Phosphor Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Yellow Silicate LED Phosphor Powder| Catalog No. | NCZ-MNO-175/25 |
| Appearance | Yellow Powder |
| Product Name | Yellow Silicate LED Phosphor Powder |
| Emission Color | Yellow |
| Relative Intensity | 100±2% |
| Peak Wavelength (nm) | 525±1 |
| CIE-X | 0.274±0.002 |
| CIE-Y | 0.638±0.002 |
| Density (g/cm3) | 4.6 |
| Particle Size (μm) | 15±2.0 |
| Chip Size (nm) | 445-470 |
Yellow-Green Photoluminescent Gravel Powder
Yellow-Green Photoluminescent Gravel Powder
| Product | Yellow-Green Photoluminescent Gravel Powder |
| CAS No. | N/A |
| Appearance | Yellow-Green or Yellowish Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | SrAl2O4:Eu,Dy |
| Density | 2.3g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-187/25 |
Yellow-Green Photoluminescent Gravel Description:
Yellow-Green Photoluminescent Gravel Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Yellow-Green Photoluminescent Gravel Powder Related Information:
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Yellow-green Photoluminescent Gravel (RGR-YG)| Catalog No. | NCZ-MNO-187/25 |
| Compositions | SrAl2O4:Eu,Dy |
| Day Color | Yellowish |
| Glowing Color | Yellow-green |
| Glowing Time | ≥8 hours (DIN 67510) |
| Product Category | RGR-YG |
| Composition | SrAl2O4:Eu,Dy |
| Day Color | Yellowish |
| Glow Color | Yellow-green |
| Particle size | 2-4, 5-8, 9-12 mm |
| Specific gravity | 2.3 g/cm3 |
| Surface Hardness | HRC 58 |
| Glowing time | ≥8 hours (DIN 67510) |
Yellow-Green Photoluminescent Pigment Powder
Yellow-Green Photoluminescent Pigment Powder
| Product | Yellow-Green Photoluminescent Pigment Powder |
| CAS No. | 12004-37-4 |
| Appearance | Yellow-Green Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | SrAl2O4:Eu,Dy |
| Density | 3.6g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-183/25 |
Yellow-Green Photoluminescent Pigment Description:
Yellow-Green Photoluminescent Pigment Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Yellow-Green Photoluminescent Pigment Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Yellow-green Photoluminescent Pigment| Catalog No. | NCZ-MNO-183/25 |
| Molecular Formula | SrAl2O4: Eu, Dy |
| Day Color | Yellowish |
| Glowing Color | Yellow-green |
| Compositions | Alkaline earth aluminate |
| Formula | SrAl2O4: Eu, Dy | |||||
| Composition | Alkaline earth aluminate | |||||
| Day Color | Yellowish | |||||
| Night Color | Yellow-green | |||||
| Specific Gravity | 3.6g/cm3 | |||||
| Excitation wavelength | 240~440nm | |||||
| Particle size (D50) μm | 5-10 | 10-20 | 20-30 | 40-50 | 75-85 | 120-150 |
| Glowing time (DIN 67510) | ≥8 hours | ≥12 hours | ||||
Yellow-Green Photoluminescent Quartz Powder
Yellow-Green Photoluminescent Quartz Powder
| Product | Yellow-Green Photoluminescent Quartz Powder |
| CAS No. | 12004-37-4 |
| Appearance | Yellow-Green or Yellowish Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | SrAl2O4:Eu+Dy+3 |
| Density | 3.4g/cm3 |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-188/25 |
Yellow-Green Photoluminescent Quartz Description:
Yellow-Green Photoluminescent Quartz Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Yellow-Green Photoluminescent Quartz Powder Related Information:
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Yellow-green Photoluminescent Quartz (RGQ-YG)| Catalog No. | NCZ-MNO-188/25 |
| Compositions | SrAl2O4:Eu,Dy + SiO2 |
| Day Color | Yellowish |
| Glowing Color | Yellow-green |
| Glowing Time | ≥8 hours (DIN 67510) |
| Product Category | RGQ-YG |
| Composition | SrAl2O4:Eu,Dy + SiO2 |
| Day Color | Yellowish |
| Glow Color | Yellow-green |
| Particle size | 1-3, 3-5, 5-10, 10-15 mm |
| Specific gravity | 2.8 g/cm3 |
| Hardness (Mohs) | 5.5 |
| Glowing time | ≥8 hours (DIN 67510) |
Yttrium Aluminum Garnet Phosphor Powder
Yttrium Aluminum Garnet Phosphor Powder
| Product | Yttrium Aluminum Garnet Phosphor Powder |
| CAS No. | 12005-21-9 |
| Appearance | Yellow Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | Y3Al5O12 |
| Density | N/A |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-180/25 |
Yttrium Aluminum Garnet Phosphor Description:
Yttrium Aluminum Garnet Phosphor is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Yttrium Aluminum Garnet Phosphor Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Yttrium Aluminum Garnet (YAG) Phosphor Powder| Catalog No. | CZ-MNO-180/25 |
| Color | Yellow |
| Excitation Range | 530-560 μm |
| Compositions | Y3Al5O12: Ce3+ |
| Model | Color | Chromaticity Coordinates CIE 1931 | Spectral Performance | ||
| x | y | Chip Excitation Wavelength (nm) | Peak Wavelength λp (nm) | ||
| LMY-4155-C | light yellow | 0.416 | 0.554 | 450-470 | 532 |
| LMY-4255-C | light yellow | 0.426 | 0.548 | 450-470 | 534 |
| LMY-4255-CC | light yellow | 0.426 | 0.548 | 450-470 | 534 |
| LMY-4354-C | yellow | 0.436 | 0.546 | 450-470 | 538 |
| LMY-4453-C | yellow | 0.446 | 0.533 | 450-470 | 543 |
| LMY-4453-CC | yellow | 0.446 | 0.533 | 450-470 | 542 |
| LMY-4749-C | dark yellow | 0.471 | 0.493 | 450-470 | 552 |
| LMY-4749-CC | dark yellow | 0.471 | 0.493 | 450-470 | 551 |
| LMY-4850-C | dark yellow | 0.486 | 0.504 | 450-470 | 553 |
| LMY-4949-C | dark yellow | 0.498 | 0.493 | 450-470 | 558 |
| LMY-5049-C | dark yellow | 0.502 | 0.489 | 450-470 | 563 |
| LMY-4255H-B | light yellow | 0.425 | 0.551 | 450-470 | 538 |
| LMY-4255H-C | light yellow | 0.425 | 0.551 | 450-470 | 538 |
| LMY-4354H-B | yellow | 0.436 | 0.543 | 450-470 | 540 |
| LMY-4453H-B | yellow | 0.447 | 0.535 | 450-470 | 543 |
| LMY-4453H-C | yellow | 0.447 | 0.535 | 450-470 | 543 |
| LMY-4652H-B | dark yellow | 0.462 | 0.523 | 450-470 | 548 |
| LMY-4453SH-C | yellow | 0.437 | 0.542 | 450-470 | 539 |
Yttrium Gallium Aluminum Garnet Powder
Yttrium Gallium Aluminum Garnet Powder
| Product | Yttrium Gallium Aluminum Garnet Powder |
| CAS No. | 12005-21-9 |
| Appearance | Yellow Green Powder |
| Purity | ≥99%,  ≥99.9%,  ≥95% (Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | Y3(Al,Ga)5O12 |
| Density | N/A |
| Molecular Weight | N/A |
| Product Codes | NCZ-MNO-186/25 |
Yttrium Gallium Aluminum Garnet Description:
Yttrium Gallium Aluminum Phosphor Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.Yttrium Gallium Aluminum Garnet Powder Related Information :
Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Yttrium Gallium Aluminum Garnet (YGaAG) Phosphor Powder| Catalog No. | NCZ-MNO-186/25 |
| Color | Yellow green |
| Excitation Range | 440 μm-470 μm |
| Compositions | Y3(GaAl)5O12: Ce3+ |
| Model | Color | Chromaticity Coordinates CIE 1931 | Spectral Performance | ||
| x | y | Chip Excitation Wavelength (nm) | Peak Wavelength λp (nm) | ||
| LMYG-3457-B | yellow-green | 0.347 | 0.575 | 440-470 | 513 |
| LMYG-3657-B | yellow-green | 0.361 | 0.573 | 440-470 | 516 |
| LMYG-3857-B | yellow-green | 0.382 | 0.564 | 440-470 | 523 |
| LMYG-3957-B | yellow-green | 0.394 | 0.565 | 440-470 | 524 |
| LMYG-4056-B | yellow-green | 0.402 | 0.562 | 440-470 | 527 |
