Acid Resist Brick Powder
Compare

Acid Resist Brick Powder

$0.00

Acid Resist Brick Powder

Product Acid Resist Brick Powder
CAS No. N/A
Appearance White Powder
Purity&nbsp ≥99%,  ≥99.9%,  ≥95% (Other purities are also available)
APS&nbsp&nbsp 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range.
Ingredient SiO2,Al2O3
Density 2.20g/cm3
Molecular Weight N/A
Product Codes NCZ-MNO-116/25

Acid Resist Brick Description:

Acid Resist Brick Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing

Acid Resist Brick Powder Related Information :

Storage Conditions:  Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Acid Resist Brick
Catalog No. NCZ-MNO-116/25
Color White
Density ≥2g/cm3
It has extensive experience in manufacturing and supplying refractory brick of the highest, most durable quality at competitive prices. We are also able to customize this product for various specifications. Description & Application of Acid Resist Brick The main component of the acid-resistant brick is silica, which forms a large amount of mullite under high-temperature roasting and is a substance with high acid resistance. Since the acid-resistant brick has a compact structure and a small water absorption rate, it can also be used at normal temperatures. It is resistant to any concentration of the alkaline medium, but it is not resistant to high temperatures. The acid-resistant brick contains more than 70% of silica and is sintered. It is widely used in the chemical industry for acid-groove, acid well, and acid storage. Specifications of Acid Resist Brick
Type AR-35 AR-38
Max Service Temperature ≥ 1200 °C ≥ 1250 °C
Al2O3 35 % 38 %
SiO2 62 % 59 %
Bulk Density ≥ 2.20 g/cm3 ≥ 2.20 g/cm3
Apparent Porosity ≤ 14% ≤ 16%
Cold Compressive Strength ≥ 600kg/cm2 ≥ 500kg/cm2
Refractoriness under Load 1325 °C 1350 °C
Acid resistance (Loss in weight) ≤ 2.5% ≤ 2.5%
Applications of Acid Resist Brick The aluminum-silicon acid resists brick is usually used in the acid ditch, acid well, acid storage and impacted the ground with large acid loading. These facilities are frequently used in the industry of petroleum, chemistry, and pharmacy. Packaging of Acid Resist Brick Our acid resist bricks are carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Add to wishlist
Request a Quote
Quick view
Agate Bead Powder
Compare

Agate Bead Powder

$0.00

Agate Bead Powder

Product Agate Bead Powder
CAS No. N/A
Appearance Light Powder
Purity&nbsp ≥99%,  ≥99.9%,  ≥95% (Other purities are also available)
APS&nbsp&nbsp 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range.
Ingredient SiO2
Density 2.60-2.64g/cm3
Molecular Weight N/A
Product Codes NCZ-MNO-128/25

Agate Bead Description:

Agate Bead Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing

Agate Bead Powder Related Information :

Storage Conditions:  Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Agate Bead
Catalog No. SM6075
Main Composition SiO2/MgO/CaO/Mn2O3
Size Dia 3-35mm
Form Bead
Minimum Order Quantity (MOQ) 25kg/drum
Agate Beads are crafted from pure, natural imported agate stone through processes including cutting, grinding, and polishing. Stanford Advanced Materials (SAM) proudly offers Agate Beads as a robust solution for your milling needs, ensuring quality and consistency in every application. Agate Bead Description Agate Beads are crafted from pure, natural imported agate stone through processes including cutting, grinding, and polishing. They come in three shapes: spherical, cylindrical, and square. These balls are characterized by their dense structure, transparent coloration, high elastic modulus, and excellent wear resistance. This product is ideal for pure and efficient dispersion and grinding of various light-colored materials in vertical stirred mills and horizontal rolling ball mills. Agate Bead Specification
Specific Gravity 2.650kg/dm3
Bulk Density 1.58kg/L
Mohs Hardness 7
Elastic Modulus >70Gpa
Minimum Order Quantity (MOQ) 25kg/drum
Chemical Composition
Composition SiO2 MgO/CaO/Mn2O3
Wt% 94 6
Specification Ball
Model Diameter (φ) mm
NG3 3-5
NG5 5-7
NG7 7-10
NG10 10-14
NG14 14-18
NG16 16-20
NG20 20-25
NG25 25-30
NG30 30-35
Cube
Model Size (φ) mm
NGS8 8*8*8 (±1.0)
NGS15 15*15*15 (±2.0)
NGS20 20*20*20 (±3.0)
*The size can be customized according to customer requirements. Agate Bead Applications This product is ideal for pure and efficient dispersion and grinding of various light-colored materials in vertical stirred mills and horizontal rolling ball mills. Agate Bead Packing 25kg/drum, Packaged in composite woven bags or drums.
Add to wishlist
Request a Quote
Quick view
Alumina Stabilized Zirconia Powder
Compare

Alumina Stabilized Zirconia Powder

$0.00

Alumina Stabilized Zirconia Powder

Product Alumina Stabilized Zirconia Powder
CAS No. N/A
Appearance White  Powder
Purity&nbsp ≥99%,  ≥99.9%,  ≥95% (Other purities are also available)
APS&nbsp&nbsp 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range.
Ingredient Zr(Hf)O2,Al2O3
Density N/A
Molecular Weight N/A
Product Codes NCZ-MNO-113/25

Alumina Stabilized Zirconia Description:

Alumina Stabilized Zirconia Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.

Alumina Stabilized Zirconia Powder Related Information :

Storage Conditions:  Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Alumina‎ Stabilized Zirconia Powder
Catalog No. NCZ-MNO-113/25
APS 45μm
Chemical Formula Zr(Hf)O2, Al2O3
Purity 99.9%
Alumina Stabilized Zirconia Powder is a unique ceramic material. With a well-balanced combination of alumina and zirconia, it exhibits high thermal stability, mechanical strength, and resistance to wear and corrosion. It specializes in producing high-purity Alumina‎ Stabilized Zirconia Materials. Customized forms are also available upon request. Alumina‎ Stabilized Zirconia Powder Description It specializes in producing high-quality Alumina‎ Stabilized Zirconia Materials. Customized forms are also available upon request. As a worldwide supplier of Alumina‎ Stabilized Zirconia, It enjoys over two decades of experience in the manufacture and sale of high-quality Alumina‎ Stabilized Zirconia. Alumina‎ Stabilized Zirconia Powder Specification
Item No. Product Name Purity Other Properties Lot Size
PSZ-10A Alumina‎ Stabilized Zirconia Zr(Hf)O2 89.5%; Al2O3: 10 % D50 <1.0 µm; Specific Surface Area > 10 m2/gm 100 kg 1,000 kg
PSZ-20A Alumina‎ Stabilized Zirconia Zr(Hf)O2 79.5%; Al2O3: 20 % D50 <1.0 µm; Specific Surface Area < 10 m2/gm 100 kg 1,000 kg
PSZ-50A Alumina‎ Stabilized Zirconia Al2O3: 50 % D50 <1.0 µm; Specific Surface Area < 10 m2/gm 100 kg 1,000 kg
Alumina‎ Stabilized Zirconia Application Alumina‎ Stabilized Zirconia is commonly used in various industries due to its excellent mechanical properties, such as high fracture toughness, strength, and wear resistance. It also exhibits good thermal stability and resistance to corrosion. These properties make ASZ suitable for applications in aerospace, automotive, and medical industries, among others.  Alumina‎ Stabilized Zirconia is used in the production of cutting tools, dental implants, fuel cells, thermal barrier coatings, and other high-performance ceramic components. The addition of alumina stabilizes the zirconia crystal structure, preventing it from undergoing phase transformation at high temperatures. This stabilization helps to maintain the mechanical properties of zirconia even under harsh conditions. Alumina‎ Stabilized Zirconia Powder Packaging Our Alumina‎ Stabilized Zirconia ceramic is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Add to wishlist
Request a Quote
Quick view

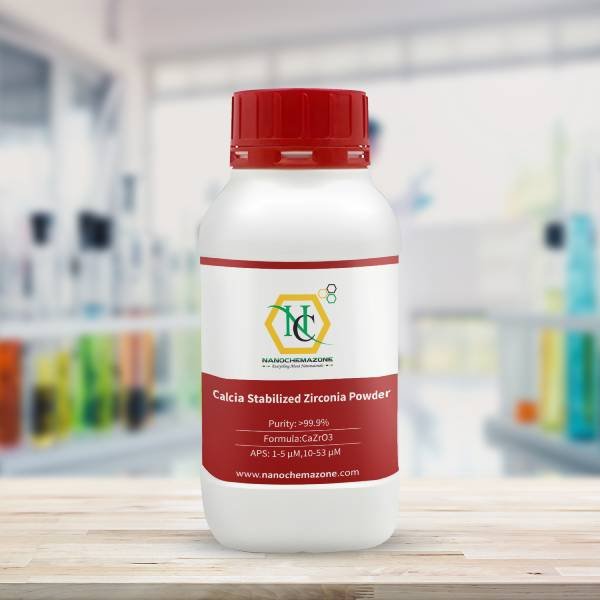

Calcia Stabilized Zirconia Powder
Compare

Calcia Stabilized Zirconia Powder

$0.00

Calcia Stabilized Zirconia Powder

Product Calcia Stabilized Zirconia Powder
CAS No. 11129-15-0
Appearance Creamy White Powder
Purity&nbsp ≥99%,  ≥99.9%,  ≥95% (Other purities are also available)
APS&nbsp&nbsp 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range.
Ingredient CaZrO3
Density 5.7g/cm3
Molecular Weight N/A
Product Codes NCZ-MNO-110/25

Calcia Stabilized Zirconia Description:

Calcia Stabilized Zirconia Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing

Calcia Stabilized Zirconia Powder Related Information :

Storage Conditions:  Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Calcia Stabilized Zirconia ZrO2·CaO Powder (CAS No. 11129-15-0)
Catalog No. NCZ-MNO-110/25
Molecular Formula CaZrO3
Melting Point ~2700 °C
Boiling point ~5500 °C
Density 5.7 g/cm3
It specializes in producing high-purity Calcia Stabilized Zirconia Materials. Customized forms are also available upon request. Calcia Stabilized Zirconia Description Calcia Stabilized Zirconia powder displays a creamy white color and a smooth texture. The powder demonstrates excellent chemical stability and high thermal resistance. Its unique composition of zirconia and calcium imparts enhanced mechanical strength and fracture resistance. Ideal for various applications, this powder offers exceptional sintering properties and exhibits remarkable wear and corrosion resistance. Calcia Stabilized Zirconia Specification
Item No. Product Name Purity Other Properties Lot Size
PSZ-4C Calcia Stabilized Zirconia Zr(Hf)O2 95.5%; CaO:4.0 ± 0.2 % D50<1 µm; Specific Surface Area < 15 m2/g 100 kg 1,000 kg
Calcia Stabilized Zirconia Applications Calcia Stabilized Zirconia Tube can be used in shafts, plungers, sealing structures, the automotive industry, oil drilling equipment, insulating parts in electrical equipment, ceramic knives, ceramic hair clipper spare parts, with high density, bending strength, and fracture toughness. Calcia Stabilized Zirconia Packaging Our Calcia Stabilized Zirconia ceramic is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Add to wishlist
Request a Quote
Quick view
Ceramic Fiber Blanket Powder
Compare

Ceramic Fiber Blanket Powder

$0.00

Ceramic Fiber Blanket Powder

Product Ceramic Fiber Blanket Powder
CAS No. 142844-00-6
Appearance White Fiber Blanket Powder
Purity&nbsp ≥99%,  ≥99.9%,  ≥95% (Other purities are also available)
APS&nbsp&nbsp 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range.
Ingredient Al2O3,SiO2
Density 96g/cm3
Molecular Weight N/A
Product Codes NCZ-MNO-105/25

Ceramic Fiber Blanket Description:

Ceramic Fiber Blanket Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing

Ceramic Fiber Blanket Powder Related Information :

Storage Conditions:  Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Ceramic Fiber Blanket
Catalog No. NCZ-MNO-105/25
Size 15000*610/1220*10mm, 14400*610/1220*12.5mm,7200*61
Material Al2O3, SiO2, ZrO2, Fe2O3, Na2O, K2O
Appearance White fiber blanket
It has extensive experience in manufacturing and supplying refractory ceramic fiber blanket of the highest, most durable quality at competitive prices. We are also able to customize this product for various specifications. Description of Ceramic Fiber Blanket Ceramic fiber is produced from high purity aluminosilicate material through a strictly controlled high-temperature furnace melting and fiberizing process. Ceramic fiber products are white and odorless, which is suitable for high-temperature applications up to 2300°F. Due to the resistance to high temperatures, good thermal stability, and significant energy-saving effects, ceramic fibers are gradually replacing traditional refractory brick refractories.  Advantages - Low heat conduction - Chemical stability - Excellent tensile strength - Excellent thermal stability and resistance to shock - Excellent sound absorption  Specification Of Ceramic Fiber Powder
Code SCFBL-1000 SCFBL-1050 SCFBL-1100 SCFBL-1260 SCFBL-1350
Working temperature(°C) <1000 1050 1100 1260 1350
Color White White White White White
Bulk density(kg/clarify) 96-128 96-128 96-128 96-128 96-128
Tensile strength(Mpa) 0.08-0.12 0.08-0.12 0.08-0.12 0.08-0.12 0.08-0.12
Al2O3 (%) 44 46 47-49 52-55 39-40
Al2O3+SiO2 (%) 96 97 99 99 -
Al2O3+SiO2+ZrO2 (%) - - - - 99
ZrO2 (%) - - - - 15-17
Fe2O3 (%) <1.2 <1.0 0.2 0.2 0.2
Na2O+K2O (%) ≤0.5 ≤0.5 0.02 0.2 0.2
Size 15000*610/1220*10mm, 14400*610/1220*12.5mm,7200*610/1220*50mm or customized
Applications of Ceramic Fiber Blanket - Insulation in aerospace, steel, and petrochemical industries - Insulation of industrial furnaces and heating devices - Fire protection of the electrical element.
Add to wishlist
Request a Quote
Quick view
Ceramic Fiber felt Powder
Compare

Ceramic Fiber felt Powder

$0.00

Ceramic Fiber felt Powder

Product Ceramic Fiber Felt Powder
CAS No. N/A
Appearance White Fiber Felt Powder
Purity&nbsp ≥99%,  ≥99.9%,  ≥95% (Other purities are also available)
APS&nbsp&nbsp 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range.
Ingredient Al2O3.2SiO2
Density 96g/cm3
Molecular Weight N/A
Product Codes NCZ-MNO-106/25

Ceramic Fiber Felt Description:

Ceramic Fiber Felt Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing

Ceramic Fiber Blanket Powder Related Information :

Storage Conditions:  Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Ceramic Fiber Felt
Catalog No. NCZ-MNO-106/25
Size 900×600×10-100mm or customized
Material Al2O3, SiO2, ZrO2, Fe2O3, Na2O, K2O
Appearance White fiber felt
It always uses its experience and expertise to provide the highest quality Ceramic Fiber products. We offer Ceramic Fiber board, paper, blanket, textiles in wide dimensions. Description Of Ceramic Fiber Felt Powder Ceramic fiber is produced from high purity aluminosilicate material through strictly controlled high-temperature furnace melting and fiberizing process. Ceramic fiber products are white and odorless, which is suitable for high-temperature applications up to 2300°F. Due to the resistance to high temperatures, good thermal stability, and significant energy-saving effects, ceramic fibers are gradually replacing traditional refractory brick refractories. Advantages - Low heat conduction - Chemical stability - Excellent tensile strength - Excellent thermal stability and resistance to shock - Excellent sound absorption - Soft and easy to cut Specification Of Ceramic Fiber felt Powder
Code SCFF-1000 SCFF-1100 SCFF-1350 SCFF-1260 SCFF-1350-1
Permanent linear change in heating (%) 1000°C×24h <-3 1100°C×24h <-3 1350°C×24h <-3 1260°C×24h <-3 1350°C×24h <-3
Heat conductivity coefficient(W/m.k) 200°C 0.060-0.085 0.103
400°C 0.092-0.112 0.125
600°C 0.112-0.126 0.151
Water content (%) <1
Organic content (%) <8
Bulk density(kg/m) 200-260
Size(mm) 900×600×10-100mm or customized
Applications of Ceramic Fiber Felt - Insulation in aerospace, steel, and petrochemical industries - Insulation of industrial furnaces and heating devices - Fireproof material - Inner liner of industrial furnace - Sealing of kiln door
Add to wishlist
Request a Quote
Quick view
Ceramic Fiber Module Powder
Compare

Ceramic Fiber Module Powder

$0.00

 Ceramic Fiber Module Powder

Product Ceramic Fiber Module Powder
CAS No. N/A
Appearance White-Off  White Powder
Purity&nbsp ≥99%,  ≥99.9%,  ≥95% (Other purities are also available)
APS&nbsp&nbsp 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range.
Ingredient Al2O3.2SiO2
Density 150-300g/cm3
Molecular Weight N/A
Product Codes NCZ-MNO-107/25

Ceramic Fiber Module Description:

Ceramic Fiber Module Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing

Ceramic Fiber Module Powder Related Information :

Storage Conditions:  Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Ceramic Fiber Module
Catalog No. NCZ-MNO-107/25
Size 300*300*250
Material Al2O3, SiO2, ZrO2, Fe2O3, Na2O, K2O
Appearance White fiber module
It has extensive experience in manufacturing and supplying refractory ceramic fiber Module of the highest, most durable quality at competitive prices. We are also able to customize this product for various specifications. Description of Ceramic Fiber Module Ceramic fiber is produced from high purity aluminosilicate material through a strictly controlled high-temperature furnace melting and fiberizing process. Ceramic fiber products are white and odorless, which is suitable for high-temperature applications up to 2300°F. Due to the resistance to high temperatures, good thermal stability, and significant energy-saving effects, ceramic fibers are gradually replacing traditional refractory brick refractories. Ceramic fiber modules can be anchored on the industrial furnace to achieve the effect of fire insulation. Advantages - Low heat conduction - Chemical stability - Excellent tensile strength - Excellent thermal stability and resistance to shock - Excellent sound absorption - Can compensate fiber furnace lining shrinkage Specifications of Ceramic Fiber Module
Code SCFM-950 SCFM-1000 SCFM-1100 SCFM-1200 SCFM-1350
Permanent linear change in heating (%) 950°C×24h <-3 1000°C×24h <-3 1100°C×24h <-3 1200°C×24h <-3 1350°C×24h <-3
Heat conductivity coefficient(W/m.k) 200°C 0.050-0.058
400°C 0.090-0.121
600°C 0.165-0.198
Slag content (%) <20
Bulk density(kg/m) 180±10; 200±10
Size(mm) 300*300*250
Applications of Ceramic Fiber Module Ceramic fiber modules are fixed on the steel plate of the furnace shell of the industrial kiln for fire protection. These industrial furnaces include - Kilns in the petrochemical industry - Kilns in the metallurgical industry - Kilns in ceramic and glass industries - Heat treatment furnace
Add to wishlist
Request a Quote
Quick view
Ceramic Fiber Profiled Powder
Compare

Ceramic Fiber Profiled Powder

$0.00

 Ceramic Fiber Profiled Powder

Product Ceramic Fiber Profiled Powder
CAS No. N/A
Appearance White-Off  White Powder
Purity&nbsp ≥99%,  ≥99.9%,  ≥95% (Other purities are also available)
APS&nbsp&nbsp 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range.
Ingredient Al2O3.2SiO2
Density N/A
Molecular Weight N/A
Product Codes NCZ-MNO-108/25

Ceramic Fiber Profiled Description:

Ceramic Fiber Profiled Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing

Ceramic Fiber Profiled Powder Related Information :

Storage Conditions: Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Ceramic Fiber Profiled
Catalog No. NCZ-MNO-108/25
Material Al2O3, SiO2, ZrO2, Fe2O3, Na2O, K2O
Appearance White
Shape Customized
It has over 2 decades of experience supplying refractory ceramic fiber of high quality at competitive prices. We are also able to customize this product as per your specifications. Description of Ceramic Fiber Profiled Ceramic fiber is produced from high purity aluminosilicate material through a strictly controlled high-temperature furnace melting and fiberizing process. Ceramic fiber products are white and odorless, which is suitable for high-temperature applications up to 2300°F. Due to the resistance to high temperatures, good thermal stability, and significant energy-saving effects, ceramic fibers are gradually replacing traditional refractory brick refractories. Advantages - Low heat conduction - Excellent tensile strength - Excellent thermal stability and resistance to shock - Excellent sound absorption Specifications of Ceramic Fiber Profiled
Code SCFP-1000 SCFP-1100 SCFP-1200 SCFP1350 SCFP1400
Permanent linear change in heating (%) 1000°C×24h <-3 1100°C×24h <-3 1200°C×24h <-3 1350°C×24h <-3 1400°C×24h <-3
Heat conductivity coefficient(W/m.k) 200°C 0.055-0.065 0.060-0.070
400°C 0.110-0.120 0.115-0.125
600°C 0.160-0.170 0.170-0.180
Bulk density(kg/m3) 260-400
Water content(%) <1
Size(mm) Customized
Applications of Ceramic Fiber Profiled Industrial furnace observation hole Industrial furnace door Heat radiation block Ceramic Fiber Profiled Packing The packing of Ceramic Fiber Profiled products is designed to protect the materials from damage, contamination, and environmental factors during transportation and storage.
Add to wishlist
Request a Quote
Quick view
Ceramic Fiber Textiles Powder
Compare

Ceramic Fiber Textiles Powder

$0.00

Ceramic Fiber Textiles Powder

Product Ceramic Fiber Textiles Powder
CAS No. N/A
Appearance White Powder
Purity&nbsp ≥99%,  ≥99.9%,  ≥95% (Other purities are also available)
APS&nbsp&nbsp 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range.
Ingredient Al2O3.2SiO2
Density 96-160g/cm3
Molecular Weight N/A
Product Codes NCZ-MNO-109/25

Ceramic Fiber Textiles Description:

Ceramic Fiber textiles Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing Ceramic Fiber Textiles Powder Related Information : Storage Conditions:  Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Ceramic Fiber Textiles
Catalog No. NCZ-MNO-109/25
Size 300*300*250
Material Al2O3, SiO2, ZrO2, Fe2O3, Na2O, K2O
Appearance White fiber textiles
It has over 2 decades of experience supplying refractory ceramic fiber of high quality at competitive prices. We are also able to customize this product as per your specifications. Description of Ceramic Fiber Textiles Ceramic fiber is produced from high purity aluminosilicate material through a strictly controlled high-temperature furnace melting and fiberizing process. Ceramic fiber products are white and odorless, which is suitable for high-temperature applications up to 2300°F. Due to the resistance to high temperatures, good thermal stability, and significant energy-saving effects, ceramic fibers are gradually replacing traditional refractory brick refractories. Ceramic fiber modules can be anchored on the industrial furnace to achieve the effect of fire insulation. Advantages - Low heat conduction - Chemical stability - Excellent tensile strength - Excellent thermal stability and resistance to shock - Excellent sound absorption - Can compensate fiber furnace lining shrinkage Specifications of Ceramic Fiber Textiles
Code SCFM-950 SCFM-1000 SCFM-1100 SCFM-1200 SCFM-1350
Permanent linear change in heating (%) 950°C×24h <-3 1000°C×24h <-3 1100°C×24h <-3 1200°C×24h <-3 1350°C×24h <-3
Heat conductivity coefficient(W/m.k) 200°C 0.050-0.058
400°C 0.090-0.121
600°C 0.165-0.198
Slag content (%) <20
Bulk density(kg/m) 180±10; 200±10
Size(mm) 300*300*250
Applications of Ceramic Fiber Textiles Ceramic fiber textiles are fixed on the steel plate of the furnace shell of the industrial kiln for fire protection. These industrial furnaces include: - Kilns in the petrochemical industry - Kilns in the metallurgical industry - Kilns in ceramic and glass industries - Heat treatment furnace Ceramic Fiber Textiles Packing The packing of Ceramic Fiber Textiles is designed to protect the materials from damage, contamination, and environmental factors during transportation and storage.
Add to wishlist
Request a Quote
Quick view

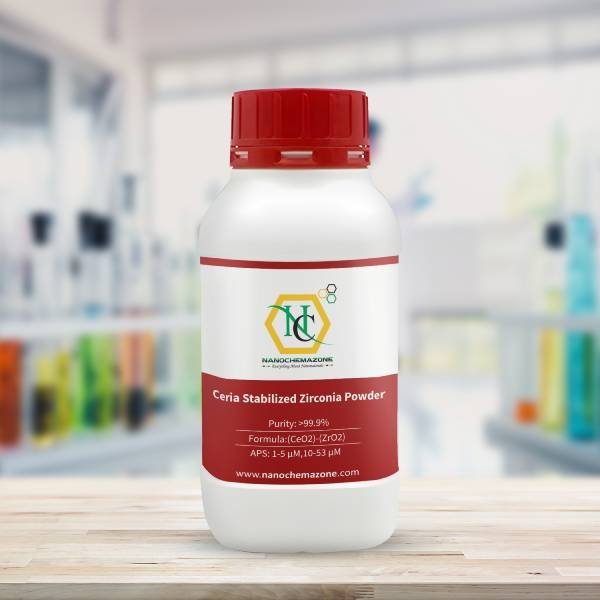

Ceria Stabilized Zirconia Powder
Compare

Ceria Stabilized Zirconia Powder

$0.00

Ceria Stabilized Zirconia Powder

Product Ceria Stabilized Zirconia Powder
CAS No. 53169-24-7
Appearance White to Yellow Powder
Purity&nbsp ≥99%,  ≥99.9%,  ≥95% (Other purities are also available)
APS&nbsp&nbsp 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range.
Ingredient (CeO2)-(ZrO2)
Density 6.61g/cm3
Molecular Weight N/A
Product Codes NCZ-MNO-112/25

Ceria Stabilized Zirconia Description:

Ceria Stabilized Zirconia Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing

Ceria Stabilized Zirconia Powder Related Information :

Storage Conditions:  Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Ceria Stabilized Zirconia (CeO2)-(ZrO2) (CSZ) Powder (CAS No. 53169-24-7)
Catalog No. NCZ-MNO-112/25
Chemical Formula (CeO2)-(ZrO2)
CAS Number 53169-24-7
Density 6.61 g/cm3
Appearance White to yellow powder
Purity >99%
It specializes in producing high purity Cerium Stabilized Zirconia Materials. Customized forms are also available upon request. Cerium Stabilized Zirconia Powder Description Cerium Stabilized Zirconia powder showcases a light yellowish hue. It possesses excellent chemical stability and thermal resistance, making it suitable for high-temperature applications. The incorporation of cerium provides enhanced oxygen ion conductivity, making it an ideal choice for solid oxide fuel cells and oxygen sensors. Additionally, Cerium Stabilized Zirconia powder demonstrates exceptional mechanical strength, fracture toughness, and resistance to thermal shock. Cerium Stabilized Zirconia Specification
Item No. Product Name Purity Lot Size
PSZ-10C Cerium Stabilized Zirconia Zr(Hf)O2 89.5%; CeO2: 10 % 100 kg 1,000 kg
PSZ-20C Cerium Stabilized Zirconia Zr(Hf)O2 79.5%; CeO2: 20 % 100 kg 1,000 kg
Ceria Stabilized Zirconia Powder Applications: Ceria stabilized zirconia ceramics are with good wear resistance, high fracture toughness, and mechanical strength. They are the ideal material for the production of high-performance grinding media(especially for grinding high-viscosity paints and compounds). Ceria-stabilized zirconia is also widely used in the automobile exhaust catalyst industry. Cerium Stabilized Zirconia Packaging Our Cerium Stabilized Zirconia ceramic is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Add to wishlist
Request a Quote
Quick view
Glass Bead Powder
Compare

Glass Bead Powder

$0.00

Glass Bead Powder

Product Glass Bead Powder
CAS No. 65997-17-3
Appearance White Powder
Purity&nbsp ≥99%,  ≥99.9%,  ≥95% (Other purities are also available)
APS&nbsp&nbsp 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range.
Ingredient Na2O-CaO-SiO2
Density 2.5g/cm3
Molecular Weight N/A
Product Codes NCZ-MNO-129/25

Glass Bead Description:

Glass Bead Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing

Glass Bead Powder Related Information :

Storage Conditions:  Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Glass Bead
Catalog No. NCZ-MNO-129/25
Compositions SiO2/MgO/CaO/Mn2O3
Size Dia 0.4-20mm
Form Bead
Minimum Order Quantity (MOQ) 25kg/drum
Glass Beads are manufactured using advanced processing techniques, including direct melting of new glass through titration, forming in deionized water, high-temperature hardening, and subsequent polishing. It proudly offers Glass Beads as a robust solution for your milling needs, ensuring quality and consistency in every application. Glass Bead Description Glass Beads are manufactured using advanced processing techniques, including direct melting of new glass through titration, forming in deionized water, high-temperature hardening, and subsequent polishing. The sphericity is 100%, with no air bubbles inside the beads, providing excellent wear resistance. This product is ideal for economically dispersing and grinding low-viscosity slurries and serves as a cost-effective configuration for traditional sand mills. Glass Bead Specification
Specific Gravity 2.5kg/dm3
Bulk Density 1.5kg/L
Mohs Hardness ≥6
Vickers hardness 630kg/mm2
Elastic Modulus 63Gpa
Minimum Order Quantity (MOQ) 25kg/drum
Chemical Composition
Chemical Composition SiO2 Na2O CaO Al2O3 MgO Others
Wt% 70 14 12 1 2 1
Specification Bead
Model Diameter (φ) mm
NS4 0.40-0.60
NS5 0.50-0.75
NS7.5 0.75-1.00
NS10 1.00-1.30
NS12.5 1.25-1.55
NS15.5 1.55-1.85
NS17 1.70-2.00
NS20 2.00-2.40
NS24 2.40-2.85
NS28.5 2.85-3.35
NS30 3.00-3.50
NS35 3.50-4.00
Ball
Model Diameter (φ) mm
NSB8 8
NSB9 9
NSB10 10
NSB11 11
NSB12 12
NSB13 13
NSB14 14
NSB15 15
NSB16 16
NSB17 17.0
NSB18 18
NSB20 20
*The size can be customized according to customer requirements. Glass Bead Applications Grinding Media: Used in the chemical and biological industries for pigments, dyes, paints, inks, varnishes, pesticides, and pharmaceuticals. Filtration Media: Serve as filtration media, catalyst carriers, and polishing and cleaning agents. Sealing Components: High-precision glass balls can be used as sealing components. Glass Bead Packing 25kg/drum, Packaged in composite woven bags or drums.
Add to wishlist
Request a Quote
Quick view
High-Alumina Brick Powder
Compare

High-Alumina Brick Powder

$0.00

High-Alumina Brick Powder

Product High-Alumina Brick Powder
CAS No. 1344-28-1
Appearance White or Gray Powder
Purity&nbsp ≥99%,  ≥99.9%,  ≥95% (Other purities are also available)
APS&nbsp&nbsp 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range.
Ingredient Al2O3
Density 2.0 to 4.1g/cm3
Molecular Weight 101.948g/mol
Product Codes NCZ-MNO-117/25

High-Alumina Brick Description:

High-Alumina Brick Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.

High-Alumina Brick Powder Related Information :

Storage Conditions:  Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. High-Alumina Brick
Catalog No. NCZ-MNO-117/25
Material Alumina
Color White or gray
Density ≥3g/cm3
Water absorption ≤5%
High-Alumina Firebrick is a brick body that can withstand combustion and high temperature. Its refractoriness is around 1700 °C. It provides high-quality High-Aluminum brick to meet your needs. High-Alumina Brick Description The High-Alumina brick has high sintering temperature, high refractoriness under load, high compressive strength, high-temperature flexural strength, and low thermal expansion efficiency. High Alumina Bricks are produced with selected bauxite chamotte as the main raw material, fired at 1450-1470 °C by the advanced process with strict quality control. High-Alumina Brick Applications High-Alumina Firebricks are mainly used in the construction of various industrial furnaces, such as masonry iron-making furnaces, steelmaking furnaces, coke ovens, glass furnaces, cement kilns, steam boilers, various heat treatment furnaces, heating furnaces, etc., as well as other high-temperature furnaces. Different types of refractory bricks should not be mixed. When firebricks are built, the same type of refractory clay as refractory bricks should be used as cement. High-Alumina Brick Specifications
type HAB-75 HAB-65 HAB-55
Al2O3≥ % 75 65 55
Fe2O3＜ % 2.5 2.4 2.6
bulk density g/cm³  2.5 2.5 2.3
comprehension stress Mpa 70 60 50
refractoriness under load °C 1510 1460 1420
refractory temperature °C 1790 1770 1770
porosity % 22 23 24
PLC % -0.3 -0.4 -0.4
High-Alumina Brick Packaging Our high-Alumina bricks are carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Add to wishlist
Request a Quote
Quick view
Light Mullite Brick Powder
Compare

Light Mullite Brick Powder

$0.00

Light Mullite Brick Powder

Product Light Mullite Brick Powder
CAS No. N/A
Appearance White Powder
Purity&nbsp ≥99%,  ≥99.9%,  ≥95% (Other purities are also available)
APS&nbsp&nbsp 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range.
Ingredient 3Al203.2SiO2
Density 0.8g/cm3
Molecular Weight N/A
Product Codes NCZ-MNO-119/25

Light Mullite Brick Description:

Light Mullite Brick Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing

Light Mullite Brick Powder Related Information :

Storage Conditions:  Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Light Mullite Brick
Catalog No. NCZ-MNO-119/25
Bulk Density(g/cm3) 0.8
Color White
Density ≤1 g/cm3
Max. Temperature 1350 °C
Light Mullite Brick is a lightweight refractory material with excellent thermal insulation properties, made primarily of mullite and designed for high-temperature applications. Light Mullite Brick Description Aluminum cordierite refractory bricks and mullite cordierite refractory bricks are mainly composed of aluminum raw materials combined with cordierite or mullite to ensure high compressive strength, thermal shock resistance, and low thermal expansion coefficient. It has a very low iron and alkali metal low melt content and therefore it has high refractoriness. The higher aluminum content allows it to maintain good performance under a reduced atmosphere. Precise dimensions: masonry, thin and uniform bricks. The masonry has high strength and high stability. Light Mullite Brick Application  Light Mullite Brick can be used as a backing insulation layer for hot surface refractory lining or other refractory materials. It can be used in melting furnaces, firing kilns, flues, refining equipment, heating equipment, regenerators, gas generators, and pipes, soaking furnaces, annealing furnaces, reaction chambers, and other similar industrial thermal equipment. Light Mullite Brick Specifications
Type MB-35 MB-38
Max Service Temperature 1260 °C 1350 °C
Al2O3 50% 55%
Fe2O3 1.2% 1.2%
Bulk Density 0.6 g/cm3 0.8 g/cm3
Cold Compressive Strength 1.3 Mpa 2.0 Mpa
Light Mullite Brick Packaging Our light mullite bricks are carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Add to wishlist
Request a Quote
Quick view
Micro Titanium Oxide Powder
Compare

Micro Titanium Oxide Powder

$0.00

Micro Titanium Oxide Powder

Product Micro Titanium Oxide Powder
CAS No. 13463-67-7
Appearance White  Powder
Purity&nbsp ≥99%,  ≥99.9%,  ≥95% (Other purities are also available)
APS&nbsp&nbsp 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range.
Ingredient TiO2
Density 1.24g/cm
Molecular Weight N/A
Product Codes NCZ-MNO-100/25

Micro Titanium Oxide Description:

Micro Titanium Oxide Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.

Micro Titanium Powder Related Information :

Storage Conditions:  Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Micro Titanium Oxide (TiO2) Powder (CAS No. 13463-67-7)
Catalog No. NCZ-MNO-100/25
APS Customized
Purity 99.9%
Specific Surface   85
Bulk Density(g/cm3) 1.24
Tap Density(g/cm3) 3.39
Morphology Anatase
Color White
Chemical Formula TiO2
CAS Number 13463-67-7
Our high-quality micro titanium oxide has cutting-edge applications in catalysis, paints, transparent functional coatings, and nano-porous layers for sensors and membranes. Micro Titanium Oxide (TiO2) Description Odorless and absorbent, TiO2 has a high refractive index – meaning it has excellent light scattering capabilities. Ideal for inclusion in a variety of consumer and industrial products, TiO2 is particularly well suited to applications that need to deliver high levels of opacity, brightness, and ultraviolet (UV) protection. Key Features and Benefits: UV Protection: Micro Titanium Oxide is well-known for its exceptional UV-blocking properties. It is a primary ingredient in sunscreens and sunblock products, shielding the skin from harmful UV radiation. Whiteness and Opacity: Its brilliant white color and high refractive index make micro titanium oxide a valuable component in pigments and paints, providing opacity and brightness to the final product. Photocatalytic Activity: In certain environmental applications, micro titanium oxide's photocatalytic properties are harnessed to purify air and water by breaking down organic contaminants and pollutants when exposed to light. Antimicrobial Effects: Titanium oxide nanoparticles have demonstrated antimicrobial activity, making them suitable for use in antibacterial coatings, paints, and medical products. Micro Titanium Oxide (TiO2) Specifications
Dielectric constant 80.0 - 100.0
Volume resistivity (Ohmcm) 10^13-10^18@25°C
Hardness - Vickers (kgf mm^-2) 980
Tensile modulus (GPa) 250.00 - 300.00
Tensile strength (MPa) 350.00
Density (g cm^-3) 4.050
Compressive strength (MPa) 800 -1000
Coefficient of thermal expansion (x10^-6 K^-1) 8.000 - 10.000 @20-1000°C
Melting point (°C) 1850.00
Thermal conductivity (W m^-1 K^-1) 2.50 - 5.00 @20°C
Micro Titanium Oxide (TiO2) Applications Cosmetics: Micro Titanium Oxide is an essential ingredient in sunscreens and cosmetics, offering broad-spectrum UV protection and opacity. Paints and Pigments: Its whiteness and opacity enhance the color and coverage of paints, coatings, and various pigmented products. Environmental Remediation: In environmental applications, micro titanium oxide's photocatalytic properties are applied for air and water purification. Antimicrobial Coatings: It is utilized to produce coatings with antimicrobial properties, making it a valuable addition to paints and medical supplies. Ceramics: The ceramic industry uses micro titanium oxide for its refractive index and resistance to high temperatures.
Add to wishlist
Request a Quote
Quick view
Micro Titanium Oxide Powder
Compare

Micro Titanium Oxide Powder

$0.00

Micro Titanium Oxide Powder

Product Micro Titanium Oxide Powder
CAS No. 1317-80-2
Appearance White  Powder
Purity&nbsp ≥99%,  ≥99.9%,  ≥95% (Other purities are also available)
APS&nbsp&nbsp 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range.
Ingredient TiO2
Density 1.24g/cm3
Molecular Weight N/A
Product Codes NCZ-MNO-102/25

Micro Titanium Oxide Description:

Micro Titanium Oxide Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing

Micro Titanium Powder Related Information :

Storage Conditions:  Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Micro Titanium Oxide (TiO2) 500μm Powder (CAS No. 1317-80-2)
Catalog No. NCZ-MNO-102/25
APS 500μm
Purity 99.9%
Specific Surface Area(m2/g) 90
Bulk Density(g/cm3) 1.24
Tap Density(g/cm3) 3.39
Morphology Rutile
Color White
Chemical Formula TiO2
CAS Number 1317-80-2
Our high-quality micro titanium oxide has cutting-edge applications in catalysis, paints, transparent functional coatings, and nano-porous layers for sensors and membranes. Micro Titanium Oxide (TiO2) 500μm Powder Description We are a leading global manufacturer of TiO2 and offer high-quality micro titanium oxide used in catalysis, paints, transparent functional coatings, and nano-porous layers for sensors and membranes. Key Features and Benefits: UV Protection: Micro Titanium Oxide is well-known for its exceptional UV-blocking properties. It is a primary ingredient in sunscreens and sunblock products, shielding the skin from harmful UV radiation. Whiteness and Opacity: Its brilliant white color and high refractive index make micro titanium oxide a valuable component in pigments and paints, providing opacity and brightness to the final product. Photocatalytic Activity: In certain environmental applications, micro titanium oxide's photocatalytic properties are harnessed to purify air and water by breaking down organic contaminants and pollutants when exposed to light. Antimicrobial Effects: Titanium oxide nanoparticles have demonstrated antimicrobial activity, making them suitable for use in antibacterial coatings, paints, and medical products. Micro Titanium Oxide (TiO2) 500μm Powder Specification
Dielectric constant 80.0 - 100.0
Volume resistivity (Ohmcm) 10^13-10^18@25°C
Hardness - Vickers (kgf mm^-2) 980
Tensile modulus (GPa) 250.00 - 300.00
Tensile strength (MPa) 350.00
Density (g cm^-3) 4.050
Compressive strength (MPa) 800 -1000
Coefficient of thermal expansion (x10^-6 K^-1) 8.000 - 10.000 @20-1000°C
Melting point (°C) 1850.00
Thermal conductivity (W m^-1 K^-1) 2.50 - 5.00 @20°C
Micro Titanium Oxide (TiO2) 500μm Powder Applications Cosmetics: Micro Titanium Oxide is an essential ingredient in sunscreens and cosmetics, offering broad-spectrum UV protection and opacity. Paints and Pigments: Its whiteness and opacity enhance the color and coverage of paints, coatings, and various pigmented products. Environmental Remediation: In environmental applications, micro titanium oxide's photocatalytic properties are applied for air and water purification. Antimicrobial Coatings: It is utilized to produce coatings with antimicrobial properties, making it a valuable addition to paints and medical supplies. Ceramics: The ceramic industry uses micro titanium oxide for its refractive index and resistance to high temperatures. Micro Titanium Oxide (TiO2) 500μm Powder Packing Our Micro Titanium Oxide (TiO2) Powder is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
Add to wishlist
Request a Quote
Quick view
Nano Titanium Oxide Powder
Compare

Nano Titanium Oxide Powder

$0.00

Nano Titanium Oxide Powder

Product Nano Titanium Oxide Powder
CAS No. 1317-80-2
Appearance White  Powder
Purity&nbsp ≥99%,  ≥99.9%,  ≥95% (Other purities are also available)
APS&nbsp&nbsp 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range.
Ingredient TiO2
Density 4.2g/cm3
Molecular Weight 79.87g/mol
Product Codes NCZ-MNO-101/25

Nano Titanium Oxide Description:

Nano Titanium Oxide Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing

Nano Titanium Powder Related Information :

Storage Conditions:  Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Nano Titanium Oxide (TiO2) Powder (CAS No. 1317-80-2), rutile
Catalog No. NCZ-MNO-101/25
CAS Number 1317-80-2
Chemical Formula TiO2
APS 15-100nm
Form White Powder
Purity 99.9%
Nano Titanium Oxide (TiO2) Powder (CAS: 1317-80-2) (ructile) refers to titanium dioxide (TiO2) particles that have been reduced to a size on the nanoscale, typically ranging from 1 to 100 nanometers. It offers high-quality Nano Titanium Oxide (TiO2) Powder with competitive pricing. Nano Titanium Oxide (TiO2) Powder (Ructile) Description Nano Titanium Oxide (TiO2) Powder refers to titanium dioxide (TiO2) particles that have been reduced to a size on the nanoscale, typically ranging from 1 to 100 nanometers. This powder possesses unique properties due to its small particle size, including high surface area, increased reactivity, and improved photocatalytic activity. Nano Titanium Oxide (TiO2) Powder finds various applications in fields such as cosmetics, sunscreens, electronics, environmental remediation, and the production of self-cleaning and antimicrobial surfaces. Nano Titanium Oxide (TiO2) Powder (Ructile) Specification
Model Purity (%) Particle Size (nm) Specific Surface Area (m²/g) Features and Applications
ZT-T01 99.99 30-80 1-10 Rutile Crystal Growth, Electronic Materials
ZT-T15 99.8 15-20 50-100 Rutile, Electronic, Battery, New Energy, Military, Target Materials, Ceramics
ZT-T25 99.8 30-50 20-50 Rutile
ZT-T50 99.8 50-60 20-50 Rutile
ZT-T100 99.8 80-100 15-25 Rutile
ZT-T200S 85-95 200 5-15 Oleophilic, Good Hiding Power, Used in Paints, Inks, Plastics
ZT-T200H 85-95 200 5-15 Hydrophilic, Used in Paints, Rubber
ZT-T25F 88-90 25-50 60-100 Hydrophilic, Textile Sizing, PVA Substitute, Wear-resistant
ZT-T25S 85-95 30-50 20-40 Oleophilic, Used in Inks, Plastics, Rubber
Nano Titanium Oxide (TiO2) Powder (Ructile) Applications
  1. Sunscreen: Due to its ability to absorb ultraviolet (UV) radiation, Nano Titanium Oxide (TiO2) Powder is used in sunscreens to protect the skin from harmful UV rays.
  2. Photocatalysis: Nano Titanium Oxide (TiO2) Powder acts as a catalyst when exposed to light, enabling photodegradation of organic pollutants in air and wastewater treatment processes.
  3. Antibacterial coatings: The antimicrobial properties of Nano Titanium Oxide (TiO2) Powder make it a suitable candidate for coatings on surfaces to inhibit bacterial growth in hospitals, public spaces, or household products.
  4. Environmental remediation: Nano Titanium Oxide (TiO2) Powder is used for the removal or degradation of pollutants in water and soil, such as heavy metals, organic compounds, and dyes.
  5. Energy applications: It is utilized in dye-sensitized solar cells to improve the efficiency of solar energy conversion and as a photocatalyst for hydrogen production through water splitting.
  6. Self-cleaning surfaces: Nano titanium oxide coatings are applied on surfaces to create a self-cleaning effect by breaking down organic contaminants when exposed to light.
Nano Titanium Oxide (TiO2) Powder (Ructile) Packaging Our Nano Titanium Oxide (TiO2) Powder is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
Add to wishlist
Request a Quote
Quick view
Niobium Dioxide Powder
Compare

Niobium Dioxide Powder

$0.00

Niobium Dioxide Powder

Product Niobium Dioxide Powder
CAS No. 12034-59-2
Appearance Bluish Black  Powder
Purity&nbsp ≥99%,  ≥99.9%,  ≥95% (Other purities are also available)
APS&nbsp&nbsp 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range.
Ingredient NbO2
Density N/A
Molecular Weight 124.91g/mol
Product Codes NCZ-MNO-114/25

Niobium Dioxide Description:

Niobium Dioxide Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing

Niobium Dioxide Powder Related Information :

Storage Conditions:  Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Niobium Dioxide (NbO2) Powder (CAS No. 12034-59-2)
Catalog No. NCZ-MNO-114/25
Product Name Niobium Dioxide, Niobium(IV) Oxide
Chemical Formula NbO2
CAS Number 12034-59-2
Molecular Weight 124.91
Appearance Bluish black solid
Purity 99.9%
Niobium Dioxide is a bluish black solid with a chemical formula of NbO2 and a molecular weight of 124.91. It offers high-quality niobium dioxide products with competitive pricing. Niobium Dioxide (NbO2) Description Niobium Dioxide is a kind of bluish black powder with a chemical formula of NbO2 and a molecular weight of 124.91. It is insoluble in water and is a powerful reducing agent, reducing carbon dioxide to carbon and sulfur dioxide to sulfur. Niobium Dioxide (NbO2) Specification
CAS Number 12034-59-2
Chemical Formula NbO2
Molecular Weight 124.91
Form bluish black powder
Density 5.9g/cm3
Melting Point 1901℃
Solubility Insoluble in water.
Niobium Dioxide (NbO2) Applications Niobium Dioxide (NbO2) is used to produce niobium metal. NbO2 can be used in optoelectronics or electronic device applications. Niobium(IV) Oxide is used as a highly non-linear selector element in emerging nonvolatile memory (NVM) and as a locally-active element in neuromorphic circuits. Niobium Dioxide (NbO2) Packaging Our Niobium Dioxide (NbO2) is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
Add to wishlist
Request a Quote
Quick view
Tantalum Pentoxide Powder
Compare

Tantalum Pentoxide Powder

$0.00

Tantalum Pentoxide Powder

Product Tantalum Pentoxide Powder
CAS No. 1314-61-0
Appearance White  Powder
Purity&nbsp ≥99%,  ≥99.9%,  ≥95% (Other purities are also available)
APS&nbsp&nbsp 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range.
Ingredient Ta2O5
Density 8.2g/cm3
Molecular Weight N/A
Product Codes NCZ-MNO-104/25

Tantalum Pentoxide Description:

Tantalum Pentoxide Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing

Tantalum Pentoxide Powder Related Information :

Storage Conditions:  Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Tantalum Pentoxide (Ta2O5) Powder (CAS No. 1314-61-0)
Catalog No. NCZ-MNO-104/25
CAS Number 1314-61-0
Purity 99.9%, 99.99%
Formula Weight 441.98
Melting Point 1800 °C
Spec. Gravity 8.2 g/cm3
Lot Size 10kg, 50kg, 100kg
Tantalum Pentoxide Powder (CAS No. 1314-61-0) is a tantalum compound and can be used in the production of lithium tantalate (LiTaO3) single crystals. Tantalum oxide (Ta2O5) is one of the most important transition metal oxides because of its extraordinary physical and chemical properties. Tantalum Pentoxide Powder Description Tantalum oxide (Ta2O5) is also known as Tantalum Pentoxide. Tantalum pentoxide powder can be used in the production of lithium tantalate (LiTaO3) single crystals. These single crystals are cut into wafers and are used as a substrate for manufacturing surface acoustic wave filters. These filters made of lithium tantalate (LiTaO3) can be used in mobile end devices such as smartphones, tablet PCs, GPS applications, and smart meters. It can provide ultrapure tantalum pentoxides, which feature especially good flow characteristics due to their narrow grain size distribution. It can be used in the crystal industry. Our tantalum pentoxides also can be used in the production of sputtering targets, with which anti-reflective layers are applied to optical lenses using physical vapor deposition (PVD). Tantalum Pentoxide Powder Specifications
Product No. Purity (Impurities in Oxides) Lot Size
TA00231 Ta2O5 > 99.9% (metals basis) Nb < 0.005%, Fe < 0.005%, Si < 0.002%Ti < 0.002%, Ni < 0.002%, W < 0.003% 10 kg 50 kg 100 kg
TA00232 Ta2O5 > 99.99% (metals basis) Nb < 10 ppm, Fe < 10 ppm, Si < 10 ppm Ti < 3 ppm, Ni < 3 ppm, W < 5 ppm 10 kg 50 kg 100 kg
TA00233 Ta2O5 > 99.995% (metals basis) Nb < 2 ppm, Fe < 3 ppm, Si < 3 ppm Ti < 1 ppm, Ni < 1 ppm, W < 2 ppm 10 kg 50 kg 100 kg
Particle size: -60 mesh, -200 mesh, -325 mesh or customized Special particle sizes can be customized upon your request. Inventory Tantalum Pentoxide (Ta2O5) Powder 99.9%, -325mesh Tantalum Pentoxide (Ta2O5) Powder 99.99%, D(50)<10 μm Tantalum Pentoxide Powder Applications Tantalum Pentoxide Powder can be used in: -Ferroelectric properties -UV laser applications combined in multilayers with silicon dioxide -film capacitors, as gate insulators in large-scale integrated circuits
Add to wishlist
Request a Quote
Quick view
Titanium Dioxide Powder
Compare

Titanium Dioxide Powder

$0.00

Titanium Dioxide Powder

Product Titanium Dioxide Powder
CAS No. 13463-67-7
Appearance White Powder
Purity&nbsp ≥99%,  ≥99.9%,  ≥95% (Other purities are also available)
APS&nbsp&nbsp 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range.
Ingredient TiO2
Density 3.9-4.5g/cm3
Molecular Weight 76.866g/mol
Product Codes NCZ-MNO-125/25

Titanium Dioxide Description:

Titanium Dioxide Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing

Titanium Dioxide Powder Related Information :

Storage Conditions:  Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. TS1944 Titanium Dioxide (TiO2) Thermal Spray Powder
Catalog No. NCZ-MNO-125/25
Material TiO2, TiO2-ZrO2-Nb2O5, TiO2-Cr2O3
Appearance White powder
It is a trusted supplier of TiO2 based thermal spray powders. We offer thermal sprays with excellent thermal shock and heat resistance. Titanium Dioxide Thermal Spray Powder Description TiO2 based thermal spray powders coatings are tough and compact. With high bonding strength, resistance to particle wear, hard surface wear and oxidation resistance, it has been a popular coating material. Titanium Dioxide Thermal Spray Powder Specifications
 Plasma generator  Plasma Gas Ar(SLPM) Plasma Gas H₂(SLPM) Current(A) Spray Distance(mm)
 F4  45 12 600 120

Product Item Compositions (wt. %) Particle size(μm) Melting point(ºC) Hardness of coating
TiO2 TNS5331 TiO2≥98.0, other oxide<2.0 -98 +44 1920 HRC:50~55
-74 +38
-53 +15
-44 +10
-38 +5
TiO2-ZrO2-Nb2O5 TNS5332 ZrO2:20.0, Nb2O5:3.0, TiO2: balance -98 +44 N/A N/A
-74 +38
-53 +15
-44 +10
-38 +5
TiO2-Cr2O3 TNS5322 Cr2O3:45.0, TiO2: balance -98 +44 2300 HRC:55~65
-74 +38
-53 +15
-44 +10
-38 +5
Titanium Dioxide Thermal Spray Powder Applications - Used for spraying of pump seals, plungers, marine propeller shafts, bearing sleeves, etc. - Used as an infrared and far-infrared coating for electric heaters; - Used for spraying solar absorption devices, electric heaters, and other components.
Add to wishlist
Request a Quote
Quick view
Tungsten Trioxide Powder
Compare

Tungsten Trioxide Powder

$0.00

Tungsten Trioxide Powder

Product Tungsten Trioxide Powder
CAS No. 1314-35-8
Appearance Light Yellow Powder
Purity&nbsp ≥99%,  ≥99.9%,  ≥95% (Other purities are also available)
APS&nbsp&nbsp 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range.
Ingredient WO3
Density 1.0g/cm3
Molecular Weight N/A
Product Codes NCZ-MNO-122/25

Tungsten Trioxide Description:

Tungsten Trioxide Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing Tungsten Trioxide Powder Related Information : Storage Conditions:  Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Tungsten Trioxide (WO3) Powder – Superfine CAS NO. 1314-35-8
Catalog No. NCZ-MNO-122/25
Size ≤0.25 µm
Material WO3
Purity WO3≥99.95%
Appearance Light yellow powder
CAS Number 1314-35-8
It is a leading manufacturer and supplier of Tungsten trioxide. We provide high-purity normal tungsten (VI) oxide and superfine tungsten (VI) oxide at competitive prices. Tungsten Trioxide (WO3) Powder – Superfine Description Tungsten trioxide, also called tungsten (VI) oxide or tungstic anhydride, is a thermally stable and water-insoluble tungsten compound. Tungsten Trioxide is generally immediately available in most volumes. Ultra-high purity, high purity, submicron and nano powder forms may be considered.  Tungsten Trioxide (WO3) – Superfine Application -Tungsten trioxide is widely used to manufacture tungstate for x-ray screen phosphors, fireproofing fabrics, and gas sensors. -Tungsten (VI) oxide has specialized use in the production of electrochromic windows. -WO3 is also used as a pigment in ceramics and paints due to its yellow color. Tungsten Trioxide (WO3) – Superfine Specification Apparent Density: ≤1.0 g/cm3 Particle Size: ≤0.25 µm BET:≥3 m2/g
Main Content (%) WO3 ≥ 99.97% Ignition Loss: ≤ 0.3%
Other Contents  (%) ≤ Al 0.0008 As 0.001 Bi 0.0001
Ca 0.001 Cd 0.0001 Co 0.0005
Cr 0.0005 Cu 0.0003 Fe 0.001
K 0.001 Mg 0.0005 Mn 0.0005
Mo 0.002 Na 0.001 Ni 0.0005
P 0.0007 Pb 0.0001 S 0.0007
Sb 0.0001 Si 0.001 Sn 0.0002
Ti 0.0005 V 0.0005 --- ---
Tungsten Trioxide (WO3) – Superfine Packing Our tungsten trioxide is clearly tagged and labeled externally to ensure efficient identification and quality control. Great care is taken to avoid any damage which might be caused during storage or transportation.
Add to wishlist
Request a Quote
Quick view
Tungsten Trioxide Powder
Compare

Tungsten Trioxide Powder

$0.00

Tungsten Trioxide Powder

Product Tungsten Trioxide Powder
CAS No. N/A
Appearance Light Yellow Powder
Purity&nbsp ≥99%,  ≥99.9%,  ≥95% (Other purities are also available)
APS&nbsp&nbsp 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range.
Ingredient WO3
Density N/A
Molecular Weight N/A
Product Codes NCZ-MNO-125/25

Tungsten Trioxide Description:

Tungsten Trioxide Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing

Tungsten Trioxide Powder Related Information :

Storage Conditions:  Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Tungsten Trioxide (WO3) Powder – Normal
Catalog No. NCZ-MNO-125/25
Size 8-25μm
Material WO3
Purity WO3≥99.95%
Appearance Light yellow powder
MSDS/SDS Download MSDS/SDS
Tungsten Trioxide (WO3) Powder Description: Tungsten trioxide, also called tungsten (VI) oxide or tungstic anhydride, is a thermally stable and water-insoluble tungsten compound. Tungsten Trioxide is generally immediately available in most volumes. Ultra-high purity, high purity, submicron and nano powder forms may be considered. Application of Tungsten (VI) Oxide Powder: -Tungsten trioxide is widely used to manufacture tungstate for x-ray screen phosphors, fireproofing fabrics, and gas sensors. -Tungsten (VI) oxide has specialized use in the production of electrochromic windows. -WO3 is also used as a pigment in ceramics and paints due to its yellow color. Specification of Normal Tungsten Trioxide Powder: Apparent Density: 1.5g/cm3 ~ 3.0 g/cm3 Particle Size: 8 µm ~ 25 µm
Main Content (%) WO3 ≥ 99.97%   Ignition Loss: ≤ 0.3%
Other Contents (%) ≤ Al 0.0008 As 0.001 Bi 0.0001
Ca 0.001 Cd 0.0001 Co 0.0005
Cr 0.0005 Cu 0.0003 Fe 0.001
K 0.001 Mg 0.0005 Mn 0.0005
Mo 0.002 Na 0.001 Ni 0.0005
P 0.0007 Pb 0.0001 S 0.0007
Sb 0.0001 Si 0.001 Sn 0.0002
Ti 0.0005 V 0.0005 --- ---
Packaging of Tungsten Trioxide (WO3) Powder: Our tungsten trioxide is clearly tagged and labeled externally to ensure efficient identification and quality control. Great care is taken to avoid any damage which might be caused during storage or transportation.
Add to wishlist
Request a Quote
Quick view
Yttrai Stabilized Zirconia Grinding Media Powder
Compare

Yttrai Stabilized Zirconia Grinding Media Powder

$0.00

Yttrai Stabilized Zirconia Grinding Media Powder

Product Yttria Stabilized Zirconia Grinding Media Powder
CAS No. 87917-52-4
Appearance White Powder
Purity&nbsp ≥99%,  ≥99.9%,  ≥95% (Other purities are also available)
APS&nbsp&nbsp 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range.
Ingredient ZrO2(Y2O3)
Density 6.0-6.1g/cm3
Molecular Weight N/A
Product Codes NCZ-MNO-120/25

Yttria Stabilized Zirconia Grinding Media Description:

Yttria Stabilized Zirconia Grinding Media Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing

Yttria Stabilized Zirconia Grinding Media Related Information :

Storage Conditions:  Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Yttria Stabilized Zirconia (YSZ) Grinding Media
Catalog No. NCZ-MNO-120/25
Size Diameter: 0.3mm to 55 mm, Cylinder: 5mm to 15mm
Material ZrO2+Y2O3
Purity 94.6%ZrO2 and 5.25%Y2O3
Shape Ball or Cylinder
Yttria Stabilized Zirconia (YSZ) Grinding Media is made from ZrO₂ stabilized with Y₂O₃, offering superior density, wear resistance, and mechanical strength. With outstanding chemical stability, thermal resistance, and grinding efficiency, YSZ Grinding Media is the top choice for high-precision grinding, milling, and dispersion. It provides consistently high-quality YSZ Grinding Media and offers custom material solutions tailored to your specifications or drawings. Yttria Stabilized Zirconia Grinding Media Description Yttria Stabilized Zirconia (YSZ) Grinding Media is known for its exceptional mechanical properties, including high density, wear resistance, and durability. It is ideal for ball milling, attrition milling, and other grinding processes requiring low contamination, high efficiency, and long operational life. Yttria Stabilized Zirconia Specification Properties
Property Unit Value
Composition wt% 94.6% ZrO₂, 5.25% Y₂O₃
Specific Density g/cm³ 6.0–6.1
Hardness Mohs >9.0
Elastic Modulus GPa 200
Fracture Toughness MPa·m⁰·⁵ 9
Grain Size μm 0.5
Thermal Conductivity W/m·K 3
Thermal Expansion Coefficient 1 x 10⁻⁶/°C 9.6
Bulk Density kg/L 3.7
Abrasion Resistance ppm/year Extremely low
Chemical Stability — Excellent (acid/alkali resistant)
YSZ Ceramic Balls
Item No. Description Lot Size
YSZ-GMB YSZ Ceramic Balls, Diameter 0.3 mm–55 mm 20 kg / 100 kg
YSZ Ceramic Cylinders
Item No. Description Lot Size
YSZ-GMC5.5X5.5 Dia. 5.5 mm x 5.5 mm 20 kg / 100 kg
YSZ-GMC7X7 Dia. 7 mm x 7 mm 20 kg / 100 kg
YSZ-GMC10X10 Dia. 10 mm x 10 mm 20 kg / 100 kg
YSZ-GMC15X15 Dia. 15 mm x 15 mm 20 kg / 100 kg
Customized sizes are available according to your requests. Yttria Stabilized Zirconia Grinding Media Features Ultra-Low Contamination: Extremely low material shedding to ensure product purity. High Grinding Efficiency: Enhances the grinding process for reduced milling time. Durability: Long operational life minimizes replacement costs. Chemical and Thermal Stability: Performs effectively in high-viscosity, wet grinding, and dispersion processes. Wide Range of Sizes: Customizable for precise milling needs. Yttria Stabilized Zirconia Grinding Media Applications Yttria Stabilized Zirconia Grinding Media is widely used across various industries due to its versatile properties: 1.Advanced Ceramics and Materials: Milling and dispersion of ceramics, pigments, and advanced materials. 2.Electronics and Semiconductors: Fabrication of electronic components and semiconductor materials. 3.Paints, Coatings, and Inks: High-efficiency grinding in the production of paints, coatings, and ink formulations. 4.Pharmaceuticals: Homogenization and grinding of APIs, excipients, and formulations with minimal contamination. 5.Food and Cosmetics: Milling of food products and cosmetic ingredients with superior safety. 6.Energy Applications: Used in battery manufacturing and renewable energy material processing.
Add to wishlist
Request a Quote
Quick view
Yttrai Stabilized Zirconia Jar with Lid Powder
Compare

Yttrai Stabilized Zirconia Jar with Lid Powder

$0.00

Yttrai Stabilized Zirconia Jar with Lid Powder

Product Yttria Stabilized Zirconia Jar with Lid Powder
CAS No. N/A
Appearance White Powder
Purity&nbsp ≥99%,  ≥99.9%,  ≥95% (Other purities are also available)
APS&nbsp&nbsp 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range.
Ingredient ZrO2-Y2O3
Density 6.05g/cm3
Molecular Weight N/A
Product Codes NCZ-MNO-121/25

Yttria Stabilized Zirconia Jar with Lid Description:

Yttria Stabilized Zirconia Jar with Lid Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing

Yttria Stabilized Zirconia Jar with Lid Powder Related Information :

Storage Conditions:  Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Yttria Stabilized Zirconia Jar with Lid
Catalog No. NCZ-MNO-121/25
Purity 94.7% ZrO2 + 5.2% Y2O3
Capacity 50ml-500ml
Density 6.05 g/cm3
Water absorption <0.05%
Hardness 1350 HV
Bending strength 950 MPa
It is a trusted supplier and manufacturer of high quality Yttria Stabilized Zirconia Jar with Lid for a wide range of industrial uses.  Yttria Stabilized Zirconia Jar with Lid Description The Yttria Stabilized Zirconia (YSZ) Jar with Lid is renowned for its exceptional mechanical strength, chemical resistance, and thermal stability. YSZ is stabilized with yttria to enhance its toughness and prevent phase transformation at varying temperatures, making it an ideal material for high-temperature applications. This jar and lid combination is highly resistant to wear and corrosion, ensuring a long lifespan even under rigorous conditions. Additionally, YSZ offers excellent insulation properties and can withstand extreme environments without degrading, making it suitable for use in demanding industrial, scientific, and laboratory settings where contamination-free storage and handling of materials are critical. Yttria Stabilized Zirconia Jar with Lid Advantages High density High hardness and toughness, 60 times the hardness of regular steel High thermal expansion and low thermal conductivity Impact resistance High corrosion and wear resistance High cost-effectiveness and long service life. Yttria Stabilized Zirconia Jar with Lid Specifications
TYPE-MQ TYPE-GT
Capacity 50ml 50ml
Outer Diameter 55mm 65mm
Height 60mm 40mm
Wall Thickness 6mm 6mm
Lid Thickness 6mm 6mm
The above dimensions are for your reference. Contact us for precise specifications or tailor-made requests. *Grinding Ball Recommendation: When you use 50mL YSZ jar, 50pcs of Dia. 5mm balls or 8 pcs of Dia. 10mm balls are recommended. Yttria Stabilized Zirconia Jar with Lid Applications Yttria Stabilized Zirconia / YSZ grinding jars are used to grind materials into extremely fine powder for use in mineral dressing processes, paints, pyrotechnics, ceramics, and selective laser sintering.  Zirconia jars and Zirconia balls are strong and have good abrasion resistance, which prevents mixing with other impurities while ball mill grinding. Yttria Stabilized Zirconia Jar is useful for a horizontal rolling mill, vibration rolling mill, vertical stirring mill, as well as different high-wire-speed sanding stick pins. They are available in specific volumes. Yttria Stabilized Zirconia Jar with Lid Packaging Zirconia grinding jars and YSZ grinding jars are carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Add to wishlist
Request a Quote
Quick view
Yttria Stabilized Zirconia Powder
Compare

Yttria Stabilized Zirconia Powder

$0.00

Yttria Stabilized Zirconia Powder

Product Yttria Stabilized Zirconia Powder
CAS No. 114168-16-0
Appearance White Powder
Purity&nbsp ≥99%,  ≥99.9%,  ≥95% (Other purities are also available)
APS&nbsp&nbsp 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range.
Ingredient Y2O3,ZrO2
Density 5.9g/cm3
Molecular Weight N/A
Product Codes NCZ-MNO-111/25

Yttria Stabilized Zirconia Description:

Yttria Stabilized Zirconia Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing

Yttria Stabilized Zirconia Powder Related Information :

Storage Conditions:  Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Yttria Stabilized Zirconia Y2O3·ZrO2 (YSZ) Powder
Catalog No. NCZ-MNO-111/25
Appearance White powder or granule
Chemical Formula Y2O3, ZrO2
Density 5.9g/cm3
Various types of Yttria Stabilized Zirconia products are supplied, including Yttria (3 mol%) Stabilized Zirconia, Yttria (5 mol%) Stabilized Zirconia, Yttria (8 mol%) Fully Stabilized Zirconia and Yttria Stabilized Zirconia PSZ-5.5YS. Yttria Stabilized Zirconia Powder Description Yttria Stabilized Zirconia (YSZ / YTZ), also known as Yttria Zirconia, Yttria Stabilized Zirconium Oxide, is the strongest ceramic material supply. YSZ is a purely tetragonal phase, fine-grain material. This material offers the highest flexural strength of all Zirconia-based materials. As a worldwide supplier of Yttria Stabilized Zirconia (YSZ / YTZ), It enjoys over two decades of experience in the manufacture and sale of high-quality Yttria Stabilized Zirconia (YSZ / YTZ). Our produces YSZ powder by self-propagating hydrolysis process. Based on the different content of Y2O3, we can produce different YSZ powders. Normal products are 3mol-YSZ powder-based, divided into compacted powder and non-compacted powder depending on the customers' requirements. The physical properties could meet customers' different requirements for dry pressing, isostatic pressing, injection, casting, injection molding, slip casting, and so on. Yttria Stabilized Zirconia Features Yttria-stabilized zirconia ceramic has the following features: Extremely high strength and toughness; Very High impact resistance; High erosion and corrosion resistance. Yttria Stabilized Zirconia Products Specification
Item No. Product Name Purity Other Properties Lot Size
PSZ-5.2Y Yttria (3 mol%) Stabilized Zirconia Zr(Hf)O2 94.5%; Y2O3: 5.2 ± 0.2 % D50 = 0.5-0.8 µm; Specific Surface Area < 15 m2/gm 100 kg 1,000 kg
PSZ-5.2Y2 Yttria (3 mol%) Stabilized Zirconia Zr(Hf)O2 94.5%; Y2O3: 5.2 ± 0.2 % D50 < 1.0 µm; Specific Surface Area <10 m 2/gm 100 kg 1,000 kg
PSZ-8.5YS Yttria (5 mol%) Stabilized Zirconia Zr(Hf)O2 91%; Y2O3: 8.5 ± 0.2 % D50= 0.5-1 µm; Specific Surface Area < 10 m 2/gm. Best for tape casting, slip casting and injection molding techniques. 100 kg 1,000 kg
PSZ-13.5Y Yttria (8 mol%) Fully Stabilized Zirconia Zr(Hf)O2 85.5%; Y2O3: 13.5 ± 0.2 % D50 = 0.5 - 1.0 µm; Specific Surface Area > 15 m2/gm. Best for pressing techniques. 100 kg 1,000 kg
PSZ-13.5YS Yttria (8 mol%) Fully Stabilized Zirconia Zr(Hf)O2 85.5%; Y2O3: 13.5 ± 0.2 % D50 = 0.5 - 1.0 µm; Specific Surface Area < 10 m2/gm. Best for tape casting, slip casting and injection molding techniques. 100 kg 1,000 kg
Yttria Stabilized Zirconia Applications YSZ ceramic has the following applications: Structural ceramics; Plasma coating; For its hardness and chemical inertness used in tooth crowns and other industries; As a refractory in jet engines and other fields; As a thermal barrier coating in gas turbines; As an electro ceramic due to its ion-conducting properties (e.g., to determine oxygen content in exhaust gases, to measure pH in high-temperature water, in fuel cells); YTZP is well suited to replacing metals.
Add to wishlist
Request a Quote
Quick view
Zirconia Rod Powder
Compare

Zirconia Rod Powder

$0.00

Zirconia Rod Powder

Product Zirconia Rod Powder
CAS No. 1314-23-4
Appearance White Powder
Purity&nbsp ≥99%,  ≥99.9%,  ≥95% (Other purities are also available)
APS&nbsp&nbsp 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range.
Ingredient ZrO2
Density 5.68g/cm3
Molecular Weight 123.22g/mol
Product Codes NCZ-MNO-123/25

Zirconia Rod Description:

Zirconia Rod Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing

Zirconia Rod Powder Related Information :

Storage Conditions:  Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Zirconia Rod, Zirconia Tube
Catalog No. NCZ-MNO-123/25
Color White
Size Customized
Material Zirconia, ZrO2 Ceramic
Form Zirconia Ceramic Tube, Zirconia Ceramic Rod
Zirconia Rods and Zirconia Tubes of high quality can be bought at Nanochemazone. As a leading supplier of zirconia products across the world, It provides customers with high-quality zirconia products in a variety of forms, including ZrO2 Ceramic Tubes and Rods. Zirconia Rod & Zirconia Tube Description Zirconia Rods and Zirconia Tubes of high quality are available at Nanochemazone. ZrO2 Ceramic Tubes and Rods have the advantages of super hardness, high wear-resisting, good corrosion resistance, high-temperature tolerance, high strength, high mechanical strength, good chemical stability, polishing surface, and so on. Zirconia Rod and Zirconia Tube are made of ZrO2 ceramics. Zirconia is an extremely refractory material. It possesses excellent chemical inertness and corrosion resistance at temperatures up to 2200℃, well above the melting point of alumina. Zirconia is stabilized in the cubic crystal structure to avoid cracking and mechanical weakening during heating and cooling. Zirconia Rod & Zirconia Tube Features
  1. Use temperatures up to 2400℃ 2. High density 3. High hardness 4. Low thermal conductivity 5. Chemical inertness 6. Resistance to molten metals 7. Good Wear resistance 8. High fracture toughness
Zirconia Rod & Zirconia Tube Specifications
Zirconia Ceramic Properties
Item Unit Typical Values
Physical Properties
Color Customized
Density g/cm3 6.00
Zirconia Content % 94.4
Gas Permeability 0
Water Absorption 0
Crystal Size um 0.5
Mechanical Properties
Rockwell Hardness(45N) R45N 78
Modulus of Elasticity (20°C) Gpa >200
Compressive Strength (20°C)  Mpa 2000
Flexural Strength (20°C)   Mpa 800
Thermal Properties
Thermal Expansion Coefficient  10-6/°C 9.6
Thermal Shock Resistance T°C 250
Thermal Conductivity (20°C-400°C) W/m.K 2.5
NCZ-MNO-123/25 & Zirconia Tube Applications Zirconia ceramic rods and tubes have diverse applications. They are used in dental implants, aerospace components, electronics, thermal barrier coatings, semiconductor processing, biomedical instruments, chemical processing, wear-resistant components, and laboratory equipment. They also find use in optical applications. With properties like high strength, biocompatibility, corrosion resistance, and thermal stability, they provide versatile solutions across industries. Zirconia Rod & Zirconia Tube Packaging Zirconia Rod and Zirconia Tube products are carefully handled to prevent damage during storage and transportation and to preserve the quality of our products in their original condition.
Add to wishlist
Request a Quote
Quick view
Zirconia Tube Powder
Compare

Zirconia Tube Powder

$0.00

Zirconia Tube Powder

Product Zirconia Tube Powder
CAS No. N/A
Appearance White Powder
Purity&nbsp ≥99%,  ≥99.9%,  ≥95% (Other purities are also available)
APS&nbsp&nbsp 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range.
Ingredient ZrO2
Density N/A
Molecular Weight N/A
Product Codes NCZ-MNO-103/25

Zirconia Tube Description:

Zirconia Tube Oxide Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing

Zirconia Tube Powder Related Information :

Storage Conditions:  Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Zirconia Tube (YSZ Tube)
Catalog NCZ-MNO-103/25
Color White
Size Customized
Material Zirconia
Zirconia's high density, low porosity, inertness, toughness, and super hardness make it the perfect material for making the zirconia tube (YSZ tube). Zirconia(YSZ) Tube Description Zirconia (ZrO2) is an extremely refractory material. They possess excellent chemical inertness and corrosion resistance at temperatures up to 2200℃, well above the melting point of alumina. Zirconia is stabilized in the cubic crystal structure to avoid cracking and mechanical weakening during heating and cooling. In addition to their refractoriness, they offer low thermal conductivity and are electrical conductors above 800 ℃. They also possess the unique ability to allow oxygen ions to move freely through the crystal structure above 600 ℃. Zirconia (YSZ) Tube Specification
Item No. (OD x ID x Length, inch)
EQ-TZ-15-8-LD 0.375" OD x 0.25" ID x 8" L (6.35 mm x 9.53 mm x 203 mm) Size tolerance:  +/- 4%
EQ-TZ-15-4117C24-LD 2" ODx 1.75" ID x 24" L (50.8 mm x 44.45 mm x 609 mm) Size tolerance:  +/- 4%
EQ-TZ-15-4117C-LD 2" ODx 1.75" ID x 36" L (50.8 mm x 44.45 mm x 914 mm) Size tolerance:  +/- 4%
The YSZ tube is very brittle and must be handled very carefully.  When used as a processing tube, the heating and cooling rates should be as slow as possible (usually <5°C/minute above 800°C and < 2°C/minute above 1500°C).  Zirconia (YSZ) Tube Application High-temperature insulation, thermal barriers, fuel cells, sensors, catalysis, and aerospace applications. Zirconia (YSZ) Tube Packaging Our Zirconia Tube (YSZ Tube) is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Add to wishlist
Request a Quote
Quick view
Zirconium Oxide Powder
Compare

Zirconium Oxide Powder

$0.00

Zirconium Oxide Powder

Product Zirconium Oxide Powder
CAS No. 1314-23-4
Appearance White Powder
Purity&nbsp ≥99%,  ≥99.9%,  ≥95% (Other purities are also available)
APS&nbsp&nbsp 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range.
Ingredient ZrO2
Density 5.68g/cm3
Molecular Weight N/A
Product Codes NCZ-MNO-127/25

Zirconium Oxide Description:

Zirconium Oxide Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing

Zirconium Oxide Powder Related Information :

Storage Conditions:  Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Zirconium Oxide Powder, Zirconia (ZrO2)
Catalog No. NCZ-MNO-127/25
Catalog Number: 1314-23-4
Chemical Formula ZrO2
Color White
Melting Point 2,715° C (4,919° F)
Density 5.68 g/cm3
Purity 99.9%
MSDS/SDS Download MSDS/SDS
Zirconium oxide powder has the properties of high melting point, high resistivity, high refractive index, and low thermal expansion coefficient. As a global supplier of Zirconium Oxide (Zirconia), It provides customers with high-quality ZrO2 products in a variety of forms, including tubes, rods, wires, etc. Zirconium Oxide Powder Description Zirconium dioxide, commonly known as zirconia, is a highly versatile oxide of zirconium with the chemical formula ZrO2. At room temperature, zirconium oxide is a white, odorless, and tasteless crystal. It is insoluble in water, hydrochloric acid, and dilute sulfuric acid, making it highly durable and chemically stable under a range of conditions. Zirconium oxide powder is characterized by its high melting point, high resistivity, and low thermal expansion coefficient, which make it an indispensable material in various high-performance applications. It is commonly used as a high-temperature resistant material, ceramic insulator, and ceramic sunscreen. In addition to these industrial uses, zirconia is also a key raw material for producing artificial diamonds, thanks to its excellent hardness and optical properties. This high-purity 99.9% zirconium oxide powder is ideal for applications that require extreme durability, thermal resistance, and electrical insulation. The powder is available in a range of particle sizes to suit different manufacturing processes and is widely used in the production of advanced ceramics, electronics, and aerospace materials. Zirconium Oxide Powder Specifications
Chemical Composition (%)
No. OZ-P OZ-B-1 OZ-B-2 OZ-R-1 OZ-R-2 OZ-R-3 OZ-R-4 OZ-R-5 OZ-R-6 OZ-R-7 OZ-R-J
Zr(Hf)O2 99.9 99.9 99.9 99.9 99.5 99.5 99.5 99.5 99.5 99.5 99.5
SiO2 0.02 0.007 0.01 0.01 0.015 0.015 0.015 0.015 0.002 0.002 0.05
Fe2O3 0.003 0.0005 0.0006 0.0006 0.002 0.002 0.002 0.002 0.005 0.005 0.01
TiO2 0.003 0.001 0.0015 0.0015 0.003 0.003 0.003 0.003 0.005 0.005 0.005
Na2O 0.005 0.001 0.0015 0.0015 0.003 0.003 0.003 0.003 0.005 0.005 0.01
CaO 0.005 0.001 0.0015 0.0015 0.003 0.003 0.003 0.003 0.005 0.0 05 0.01
Physical Properties
Particle Size (Mesh) - - 60-150 - - - - 60-325 - - -
Specific Surface Area (m2/g) <10 1-4 1-4 1-4 2-6 2-6 2-6 2-6 3-7 3-7 2-6
D50 (μm) <1.0 - - 3-6 3-6 6-8 - - 1<D50<3 ≤1.0 306
Zirconium Oxide Powder Applications Zirconium oxide powder is used in a wide range of applications due to its excellent properties such as high melting point, chemical stability, and durability. Some of the key applications include: Raw Material for Metal Zirconium and Its Compounds: Zirconium oxide is a critical component in the production of metal zirconium and other zirconium-based compounds, which are used in various industrial processes. Refractory Materials: Due to its high melting point, zirconium oxide is used extensively as a refractory material in high-temperature applications such as furnaces and kilns. Thermal Barrier Coatings: The application of plasma-sprayed zirconium dioxide thermal barrier coatings on aerospace and industrial gas turbines has seen significant progress. These coatings help protect components from extreme temperatures and wear. Ceramic Materials: Zirconium oxide is used in the production of advanced ceramics, which find applications in cutting tools, dental ceramics, and other high-performance ceramic products. Incandescent Gas Lampshades and Enamels: Zirconium oxide is used in the manufacture of incandescent gas lampshades, enamels, and white glass, where its high stability and durability are essential. Refractory Crucibles: It is also utilized in the creation of refractory crucibles, which are used to melt and handle metals at high temperatures. Zirconium Oxide Powder Packaging Zirconium oxide powder is carefully handled to prevent damage during storage and transportation and to preserve the quality of our products in their original condition.
Add to wishlist
Request a Quote
Quick view
Zirconium Oxide-Based Thermal Spray Powder
Compare

Zirconium Oxide-Based Thermal Spray Powder

$0.00

Zirconium Oxide-Based Thermal Spray Powder

Product Zirconium Oxide-Based Thermal Spray Powder
CAS No. 1314-23-4
Appearance White Powder
Purity&nbsp ≥99%,  ≥99.9%,  ≥95% (Other purities are also available)
APS&nbsp&nbsp 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range.
Ingredient ZrO2
Density 5.58-5.89g/cm3
Molecular Weight 123.22g/mol
Product Codes NCZ-MNO-126/25

Zirconium Oxide-Based Thermal Spray Description:

Zirconium Oxide-Based Thermal Spray Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing

Zirconium Oxide-Based Thermal Spray Powder Related Information :

Storage Conditions:  Airtight sealed, avoid light and keep dry at room temperature. Please contact us for customization and price inquiry Email: [email protected] Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters. Zirconium Oxide-Based (ZrO2) Thermal Spray Powder
Catalog No. NCZ-MNO-126/25
Material Zr2O3-CaO, ZrO2-CaCO3, ZrO2-Y2O3, etc.
Appearance White powder
Upgrade your thermal spray applications with our high-quality Zirconium Oxide-Based (ZrO2) Thermal Spray Powder.  We offer thermal sprays with excellent thermal shock and heat resistance. Zirconium Oxide-Based Thermal Spray Powder Description The zirconia-based thermal spray powder coating is dense and non-tough, it is resistant to high-temperature particle erosion, has excellent thermal shock resistance, and has good thermal insulation properties. This advanced thermal spray material is designed to provide exceptional thermal barrier coatings, corrosion resistance, and wear protection for a wide range of industrial applications.  Zirconium Oxide-Based Thermal Spray Powder Specifications
Plasma generator Plasma Gas Ar(SLPM) Plasma Gas H₂(SLPM) Current(A) Spray Distance(mm)
F4 42 11 550 120
Compositions (wt. %) Particle size(μm) Melting point(ºC) Hardness of coating
CaO:5.0, ZrO2:balance -98 +44 2535~2550 HRC:30~45
-74 +38
-53 +15
-44 +10
-38 +5
CaO:10.0, ZrO2:balance -98 +44 2535~2550 HRC:30~45
-74 +38
-53 +15
-44 +10
-38 +5
CaO:31.0, ZrO2:balance -98 +44 2535~2552 HRC:30~45
-74 +38
-53 +15
-44 +10
-38 +5
CaCO3:8.0, ZrO2:92.0 -98 +44 2590 HRC:35~45
-74 +38
-53 +15
-44 +10
-38 +5
Y2O3:8.0, ZrO2:balance -98 +44 2480 HRC:35~45
-74 +38
-53 +15
-44 +10
-38 +5
Y2O3:13.0, ZrO2:balance -98 +44 2480 HRC:35~45
-74 +38
-53 +15
-44 +10
-38 +5
Y2O3:20.0, ZrO2:balance -98 +44 2480 HRC:35~45
-74 +38
-53 +15
-44 +10
-38 +5
TiO2:18.0, Y2O3:10.0, ZrO2:balance -98 +44 2480 HRC:35~45
-74 +38
-53 +15
-44 +10
-38 +5
CeO2:25.0, Y2O3:2.5, ZrO2:balance -98 +44 2480 HRC:35~45
-74 +38
-53 +15
-44 +10
-38 +5
MgO:24.0, ZrO2:balance -98 +44 2140 HRC:30~35
-74 +38
-53 +15
-44 +10
-38 +5
SiO2:35.0, ZrO2:balance -147 +44 2121 HRC:35~45
-98 +44
-74 +38
-53 +15
-44 +10
Zirconium Oxide-Based Thermal Spray Powder Applications - Used as a thermal barrier coating for rocket and jet engine combustion chambers, gas turbine blades, and internal combustion engine combustion chambers; - High temperature-resistant and particle-resistant coating of the missile nose cone and rocket nozzle; - Thermal shock and anti-adhesion coating for brazing and heat treatment fixtures. Zirconium Oxide-Based Thermal Spray Powder Features: Superior Thermal Insulation: Zirconium oxide-based thermal spray powder offers outstanding thermal insulation, making it perfect for applications where extreme temperatures are a concern. It effectively reduces heat transfer and enhances component longevity. Excellent Corrosion Resistance: ZrO2 is highly resistant to corrosion, ensuring that your coated components remain durable and reliable even in harsh environments. Exceptional Wear Protection: The high-density coating provided by ZrO2 thermal spray powder helps protect your components from wear, extending their lifespan and reducing maintenance costs. Chemical Stability: ZrO2 exhibits excellent chemical stability, making it suitable for applications involving aggressive chemicals and high-temperature gases. Versatile Applications: This thermal spray powder can be applied to various substrates, including metals, ceramics, and composites, making it versatile for a wide range of industries, including aerospace, automotive, energy, and more. Zirconium Oxide-Based Thermal Spray Powder Benefits: Improved Efficiency: By applying Zirconium Oxide-Based Thermal Spray Powder, you can optimize the performance of your equipment, leading to increased efficiency and reduced downtime. Cost Savings: Reduced maintenance, extended component lifespans, and enhanced protection against wear and corrosion result in significant cost savings over time. Customizable Coating Thickness: The powder's composition allows for precise control over coating thickness, ensuring you get the protection and insulation you need for your specific application. Zirconium Oxide-Based Thermal Spray Powder Packaging -1 kg/bag -20 kg/Metal can -100 kg and more / Steel drum, or customized All packaging materials are suitable for air, sea, and road freight.
Add to wishlist
Request a Quote
Quick view
