Open Cell Copper Foam Heat Exchanger
$0.00
Open Cell Copper Foam Heat Exchanger
Copper Metal Foam open cell
| Stock No. | NCZFF105 |
| PPI | 10 to 110 PPI, customization is also possible |
| Bulk Density | 0.80-0.85 g/cc |
| Purity | ≥99.9% |
| Porosity | ≥70%, customization is also possible |
| Dimension | 500 mm X 500 mm, customization is also possible |
| Thickness | 1 mm to 25 mm, customization is also possible |
| Compression Strength | 131 psi |
| Tensile Strength | 1000 psi |
| Shear Strength | 190 psi |
| Modulus of Elasticity (Compression) | 107 kpsi |
| Modulus of Elasticity (Tension) | 14.6 × 103 psi |
| Shear Modulus | 40.9 kpsi |
| Vickers Hardness | 35 |
| Specific Heat | 0.385 J/g-°C |
| Bulk Thermal Conductivity | 10.1 W/m-°C |
| Coefficient of Thermal Expansion | 1.7 × 10-5 m/m–°C (0-100°C) |
| Bulk Resistivity | 2.56× 10-5 ohm – in |
| Melting Point | 1080 °C |
Ask for customization while ordering
Description
Note: For pricing & ordering information, please contact us at [email protected]
Please contact us for quotes on Larger Quantities & Customization. E-mail: [email protected]
Customization:
If you are planning to order large quantities for your industrial and academic needs, please note that customization of parameters (such as size, length, purity, functionalities, etc.) are available upon request.
Shipping & Delivery
Related products
Aluminium Foam Panel
Aluminium Metal Foams Panel
Aluminium Metal Foams
| Product | Aluminium Foam Panel |
| Stock No. | NCZFF113 |
| CAS No. | 7429-90-5 |
| Purity | 99.9% |
| Cell Type | Closed Cell as well as Open Cell, customization is available |
| Density | 0.35g /cm³~ 0.7g /cm³ |
| Tensile Strength | 1.3~2.0 Mpa |
| Compressive Strength | 1.5~2.0 Mpa |
| Thermal Conductivity | 0.268 W/m.K |
| Melting Point | 780 °C |
| Shape | Foam Panel |
| Number of pores/inch (PPI) | 10-100 PPI, customization is possible on demand |
| Thickness | 1 mm – 250 mm, customization is possible on demand |
| Available Sizes | 100 x 100 mm, 500 x 500 mm, 600 x 600 mm, 1000 x 500 mm, 1200 x 600 mm, 2000 x 800 mm, Size customization is possible on demand |
| Storage Conditions | Stored in a cool and dry place, away from the fire, Heat source |
Aluminium Metal Foam Open Cell or Closed Cell, Both are available (Ask for Size Customization)

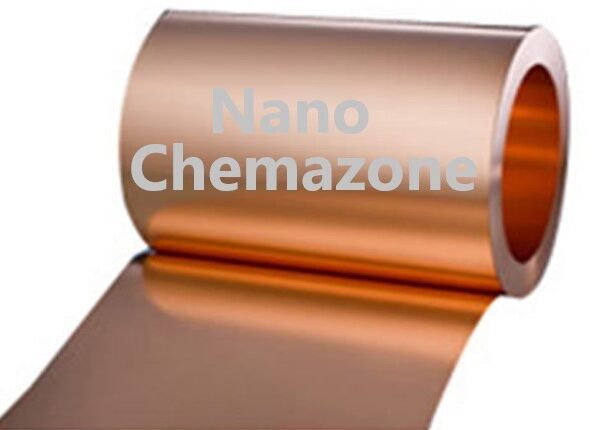

Copper Foil Sheets
