Silver Foil Sheets
$0.00

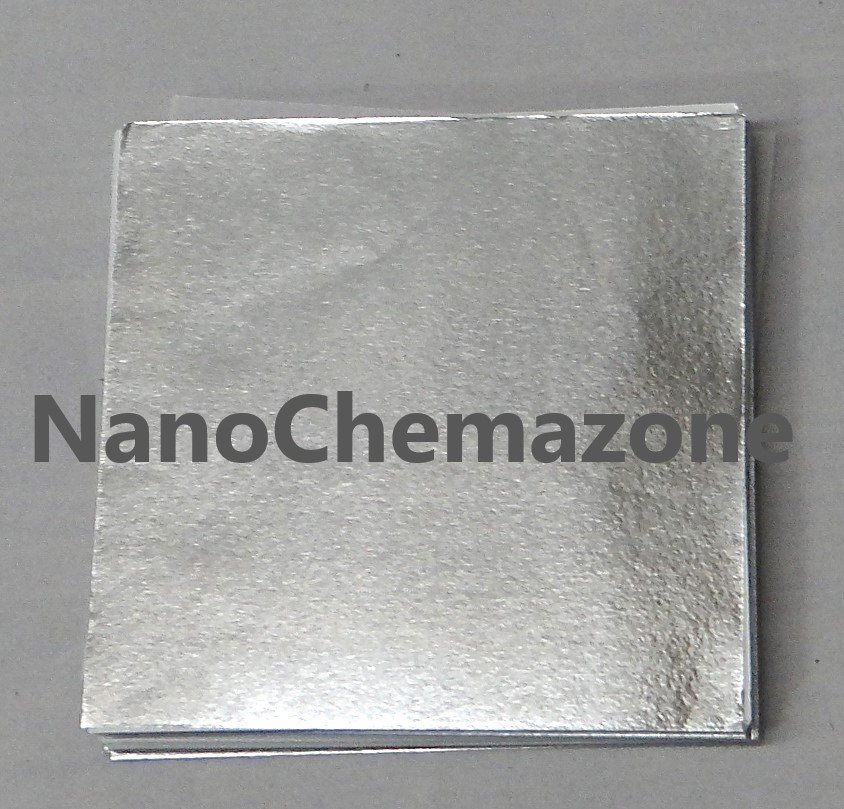

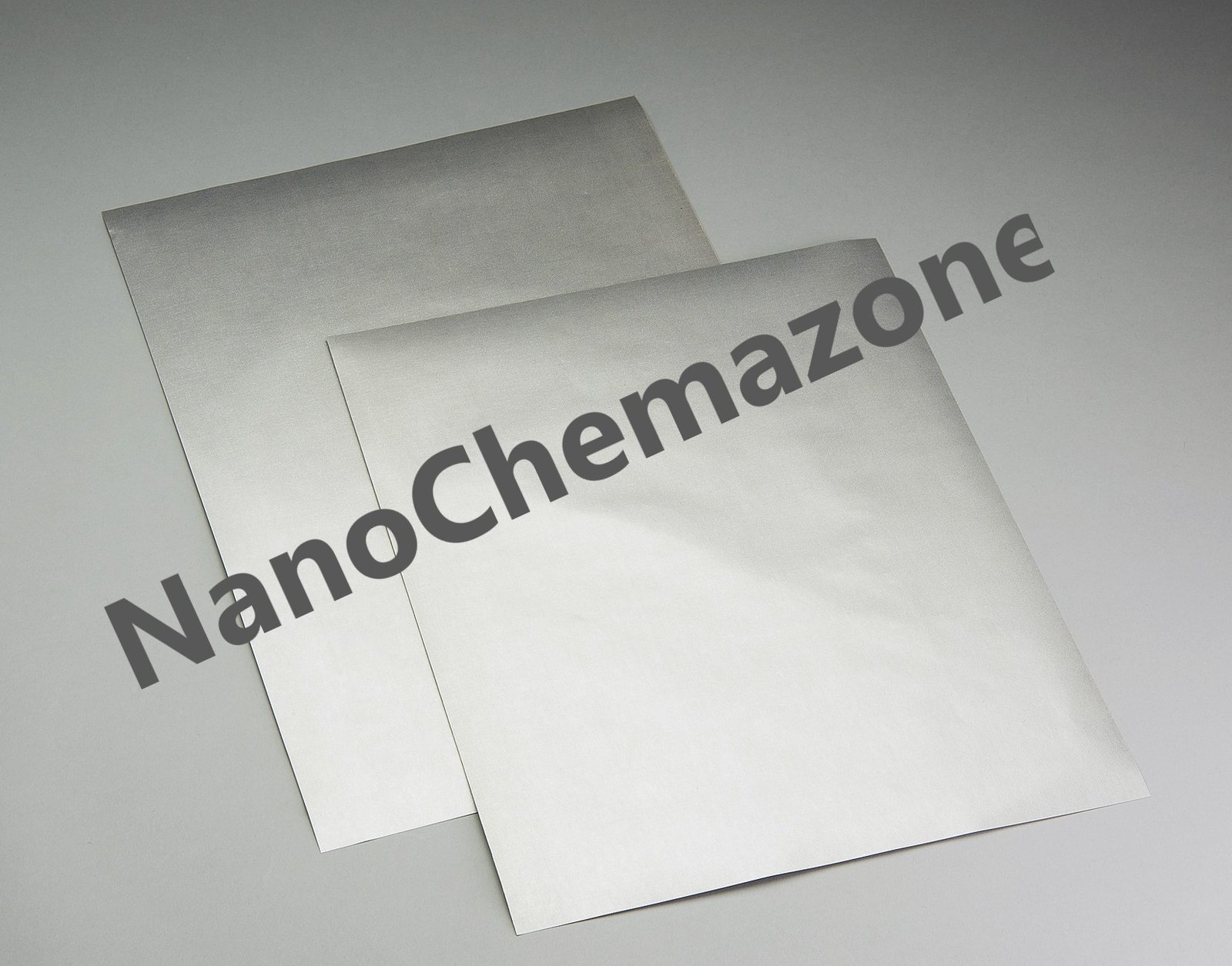

Silver Foil Sheets (Ag foil, thickness 0.025 mm, ≥ 99.99% trace metals basis)
Silver Foil Sheets
Product: Silver Foil Sheets (Ag foil, thickness 0.025 mm, ≥ 99.99% trace metals basis)
| Materials | Silver Foil Sheets |
| Chemical Formula | Ag |
| Stock No. | NCZ-F-00117 |
| CAS | 7440-22-4 |
| Purity | ≥ 99.9% |
| Thickness | 0.025 mm, 0.05 mm, 0.1 mm, 0.25 mm, 0.5 mm, 1 mm etc. (Customization is available on request) |
| Molecular Weight | 107.87 |
| EC Number | 231-131-3 |
| PubChem Substance ID | 24856080 |
| Density | 10.49 g/cm3(lit.) |
| Resistivity | 1.59 μΩ-cm, 20°C |
| Boiling Point | 2212 °C(lit.) |
| Melting Point | 960 °C(lit.) |
| Polished | Both Side Polished, one side polished, without Polish
(Customization possible) |
| Appearance Quality | Foil/Sheet appearance |
| Size | 25 × 25 mm, 25 x 50 mm, 50 × 50 mm, 100 x 100 mm (Customization is available on request) |
Description
Note: For pricing & ordering information, please contact us at [email protected]
Please contact us for quotes on Larger Quantities & Customization. E-mail: [email protected]
Customization:
If you are planning to order large quantities for your industrial and academic needs, please note that customization of parameters (such as size, length, purity, functionalities, etc.) are available upon request.
Shipping & Delivery
