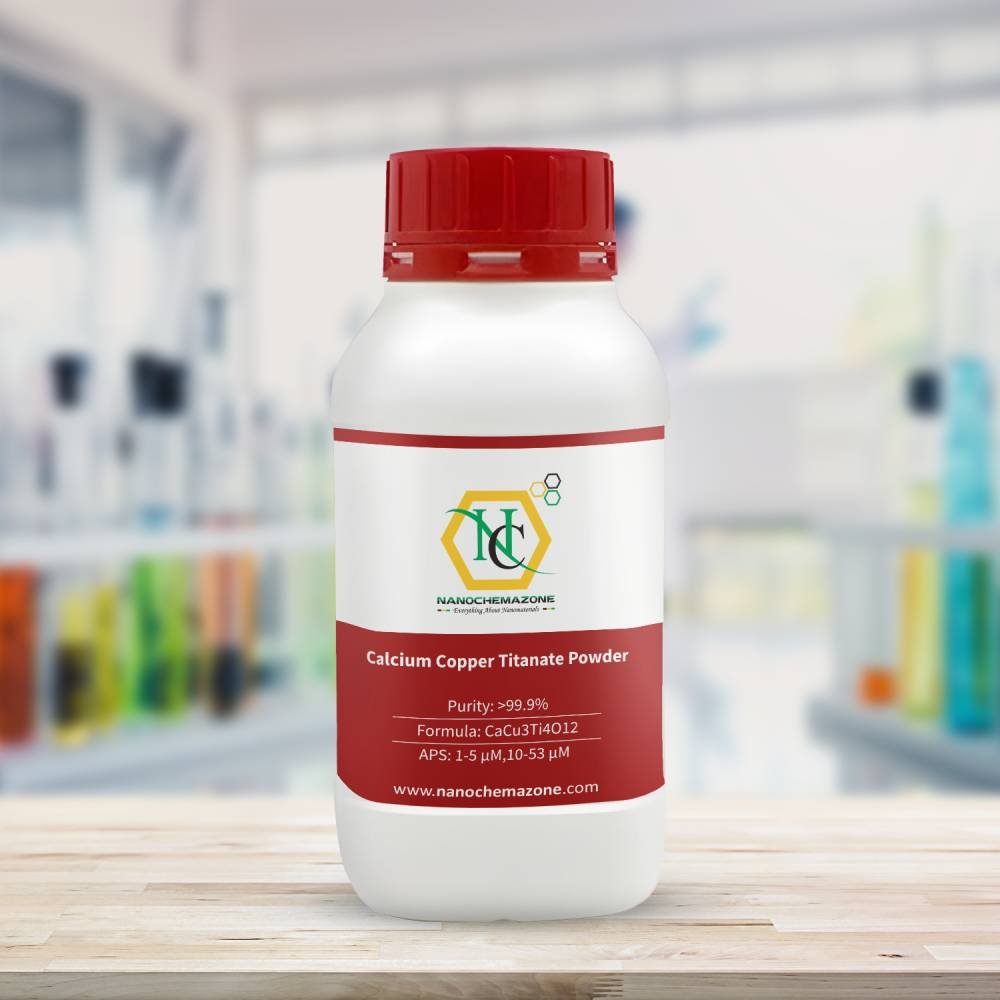

Calcium Copper Titanate Powder
$0.00
Calcium Copper Titanate Powder
| Product | Calcium Copper Titanate Powder |
| CAS No. | 12336-91-3 |
| Appearance | Brown Solid |
| Purity | ≥99%,  ≥99.9%,  ≥95%(Other purities are also available) |
| APS | 1-5 µM, 10-53 µM  (Can be customized),  Ask for other available size range. |
| Ingredient | CaCu3Ti4O12 |
| Density | 4.7 g/cm3 |
| Molecular Weight | 614.1789 g/mol |
| Product Codes | NCZ-DCY-115/25 |
Calcium Copper Titanate Description:
Calcium Copper Titanate Powder is one of the numerous advanced ceramic materials manufactured by Nanochemazone. Nanochemazone produces too many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information are available. Please request a quote above for more information on lead time and pricing.
Calcium Copper Titanate Powder Related Information :
Storage Conditions:
Airtight sealed, avoid light and keep dry at room temperature.
Please contact us for customization and price inquiry
Email: contact@nanochemazone.com
Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters.
Calcium Copper Titanate (also abbreviated CCTO, for calcium copper titanium oxide) is an inorganic compound with the formula CaCu3Ti4O12. CCTO is note worthy for its extremely large dielectric constant (effective relative permittivity) of in excess of 10,000 at room temperature.
Chemical formula: CaCu3Ti4O12
Appearance: Brown solid
Density: 4.7 g/cm3 , solid
Melting point: >1000 °C
Crystal structure: Cubic
Molar mass: 614.1789 g/mol
Calcium copper titanate Technical Parameters
| Item | Unit | Spec |
| Purity | wt% | ≥99.5 |
| Particle Size (D50 ) | μm | 0.5~3.0 |
| Particle Size (D50 ) | wt% | <0.01 |
| SrO | wt% | <0.05 |
| Na2O+K2O | wt% | <0.01 |
| Al2O3 | W%t | <0.1 |
| SiO2 | wt% | <0.1 |
| H2O | wt% | <0.5 |
| Ignition loss | wt% | <1.0 |
| Other content | Adjustable | |
| Size | Adjustable | |
| Packing | 25 kg PE liner Kraft paper | |
- CCTO can be used for capacitor and resistor, new energy battery industry.
- CCTO can be applied to the dynamic random memory, that is stored DRAM.
- CCTO can be used in electronics, the new battery, solar battery, new energy vehicle battery industry, etc.
- CCTO can be used for high-end space capacitance, the sun plate, etc.
- As electronic ceramic material, CCTO can be used for dielectric ceramics, piezoelectric ceramics, etc.
Description
Description
Note: For pricing & ordering information, please get in touch with us at sales@nanochemazone.com
Please contact us for quotes on Larger Quantities and customization. E-mail: contact@nanochemazone.com
Customization:
If you are planning to order large quantities for your industrial and academic needs, please note that customization of parameters (such as size, length, purity, functionalities, etc.) is available upon request.
NOTE:
Images, pictures, colors, particle sizes, purity, packing, descriptions, and specifications for the real and actual goods may differ. These are only used on the website for the purposes of reference, advertising, and portrayal. Please contact us via email at sales@nanochemazone.com or by phone at (+1 780 612 4177) if you have anyÂ
